Fully Automatic Lamination Machine
Created with Pixso.

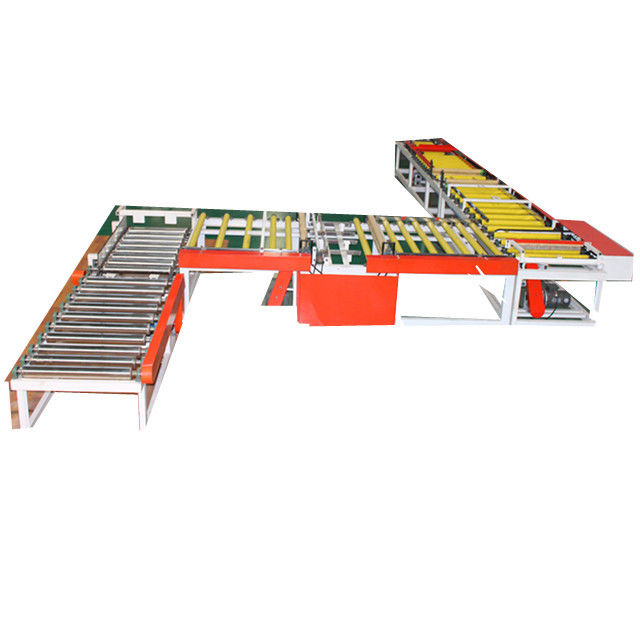

CE Certification PVC Laminated Gypsum Ceiling Board Production Line

Name

CE Certification PVC Laminated Gypsum Ceiling Board Production Line

Brand Name: LVJOE
Model Number: FM1300
MOQ: 1 line
Price: US $20000-200000
Payment Terms: L/C, T/T
Supply Ability: 10 lines per year
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei,China(mainland)
Certification:
ISO CE
Application:
Laminating The Gypsum Board
Electric Control:
PLC System
Dimension(L*W*H):
12600*1950*1600mm
Effective Laminating:
1300mm
Speed:
2-15m/min (adjustable)
Warranty:
1 Year
After-sales Service:
Engineers Available To Service Overseas
Power:
100KW
Packaging Details:
Standard package
Supply Ability:
10 lines per year
Highlight:

full automatic shrink wrapping machine

,

automatic packing machine

Product Description
CE Certification PVC Laminated Gypsum Ceiling Board Production Line
Product Specifications
Attribute Value
Application Laminating the gypsum board
Electric Control PLC system
Dimension (L×W×H) 12600×1950×1600mm
Effective Laminating 1300mm
Speed 2-15m/min (adjustable)
Warranty 1 year
After-sales Service Engineers available to service overseas
Power 100KW
Product Overview

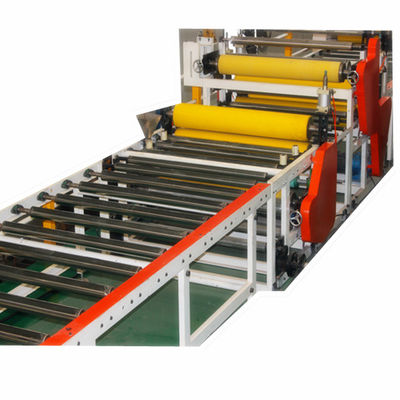

The gypsum board lamination machine laminates fiber glass, paper, PVC film and aluminum foil on gypsum board. The finished products are ideal for ceiling tiles and partition wall panels.

Production Process Flow

Automatic feeding → dust cleaning → PVC film and aluminum foil laminating → film cutting (manual/automatic) → conveying → vertical cutting (dust collecting) → horizontal cutting (dust collecting) → small board stacking → edge sealing → stretch packing → finished products stacking

Key Features
  • Multiple automation levels available
  • Siemens PLC control system (world-renowned brand)
  • High production capacity of 4-8 million sqm per year
  • Compatible materials: Gypsum board, PVC film, Aluminum foil, glue
  • Maximum laminating width: 1300mm
  • Sheet thickness range: 5-30mm
  • Maximum laminating speed: 15m/min
  • Frequency conversion synchronous speed regulation
Technical Parameters
Model LV-1300SFM01 LV-1300SFM02 LV-1300SFM03
Max. Laminating Width 1300mm
Thickness of Sheet 5-30mm
Max. Laminating Speed 15m/min
Speed Regulation Frequency conversion synchronous speed regulating
Contact Information

Email: 17732172215@sina.cn

WeChat/WhatsApp: 17732172215

Skype: 16630111157
