| Place of Origin: | Hebei , China (Mainland) |
| Brand Name: | LVJOE |
| Certification: | CE ISO 9001 |
| Model Number: | 1300FM01 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard package for export or as per request for PVC and PET film faced gypsum ceiling board making machines. |
| Delivery Time: | 60 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 Sets Per Year |
| Features: | Easy To Operate | Weight: | 3-30t |
|---|---|---|---|
| Voltage: | 380V | Dimension(L*W*H): | 12600*1950*1600 |
| Driven Type: | PLC System | Warranty: | 1 Year |
Fully Automatic Double Side Plasterboard PVC Ceiling Extrusion Machine
Production Description
gypsum board lamination machine usage and features:
The machine is fit for the surface decorative materials, such as pasted and compound decorative
film and decorative paper,etc of the PVC baseboard, profile,low foaming board and wood board, etc.
| Effective laminating width | ≤1300mm |
| Sheet thickness | 5-30mm |
| Laminating speed | 15m/min |
| Speed adjustment way | Frequency conversion synchronous speed regulating |
| Electrical control | PLC system |
| Film material | PVC film, aluminum foils, decorative material, etc. |
| installed power | 22kw |

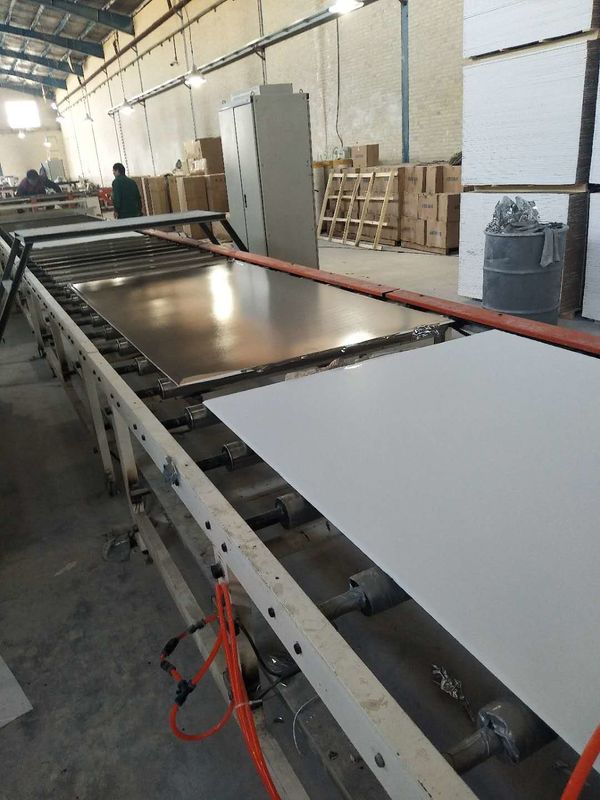

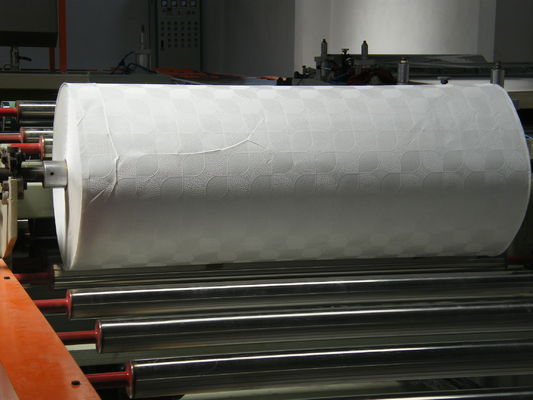

Lamination machine
The lamination machine is used to paste the decorative film and boards together.First, put the
board on the rollers. After the dust collection process, coat the glue on the boards, the glue will
be qualitatived after conveying on the guide rollers. Then it will be combined with the film and
enters into the recombination mechanism. After passing and cyclic rolling of the two lines of
press roller, pinch roller andforming roller, the recombination is finished.
Company Information
HEBEI LVJOE MACHINERY MANUFACTURING CO.,LTD. established in 1998, is a large manufacturer
of integrated supply dedicated in researching,manufacturing,trading of plasterboard machinery. We are
HEBEI province municipal civilized and creditable unit,with high-tech enterprise certificate issued by the
state,national patent licenses,CE qualitysystem certification issued by the EU,and ISO9001 quality
system certification.
