Gypsum Ceiling Tile Production Line
Created with Pixso.

Economic PVC Laminated Gypsum Board Cutting Machine With 600*600mm Yield

Name

Economic PVC Laminated Gypsum Board Cutting Machine With 600*600mm Yield

Brand Name: GREENS
Model Number: FM
MOQ: 1 Line
Price: US $20000-200000
Payment Terms: L/C, T/T
Supply Ability: 20 lines per year
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei China
Certification:
ISO CE
Features:
Easy To Operate
Product Name:
Machine Gypsum Board Cutting Machine
Warranty:
1 Year
Finished Board Size:
595*595 , 603*603, 600*1200mm
Certification:
ISO CE
Raw Material:
Pvc Film, Gypsum Board,aluminum Foil , Glue
Packaging Details:
1) Standards export packing which fit for long time delivery 2) Seaworthy packing.Use 20GP,40GP and 40HQ containers and frame containers
Supply Ability:
20 lines per year
Highlight:

gypsum board feeding machine

,

gypsum board hurting machine

Product Description
Economic PVC Laminated Gypsum Board Cutting Machine With 600×600mm Yield
Product Specifications
Attribute Value
Product name Machine gypsum board cutting machine
Features Easy to operate
Warranty 1 year
Finished Board Size 595×595, 603×603, 600×1200mm
Certification ISO, CE
Raw material PVC film, gypsum board, aluminum foil, glue
Product Description

The Economic Type PVC Laminated Gypsum Board Cutting Machine efficiently cuts standard 1220×2440mm gypsum boards into precise sizes of 595×595, 603×603, or 1200×600mm.

  • Capacity: 833 sqm/hour (based on L:595mm, T:7mm, W:595mm, weight: 5.5 kg/M² for 7mm board)
  • Automation: Optional automatic loading and unloading devices available
  • Main Materials: Gypsum board, PVC film, aluminum foil, PVC glue, aluminum glue

Note: This cutting machine requires installation with a dust collecting machine for optimal operation.

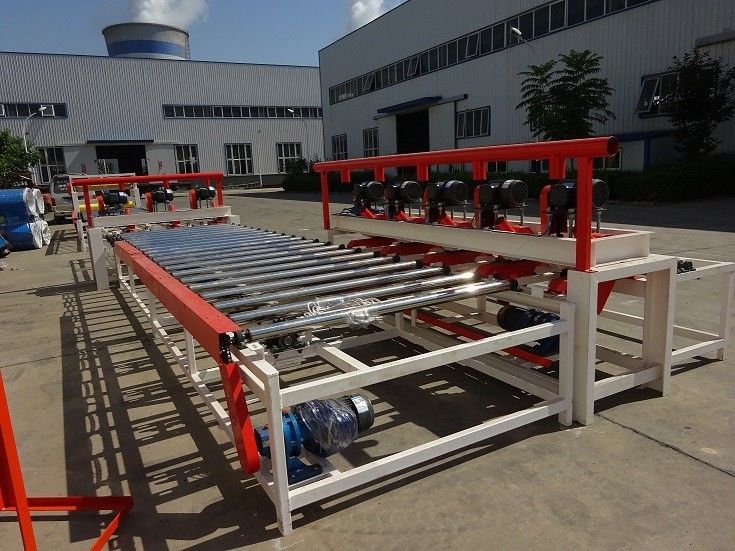

Economic PVC Laminated Gypsum Board Cutting Machine With 600*600mm Yield 0
Gypsum Ceiling Board Lamination Machine Specifications
  • Lamination width: 1220mm
  • Gypsum board size: 1220×2440mm
  • Glue: Special adhesive for PVC film and aluminum foil
  • Maximum sheet speed: 15m/min
  • Sheet thickness range: 2-50mm
  • Motor power: 4.5kW
  • Coating and lamination parts driven by chain wheel
Our Product Range
  • PVC gypsum ceiling board production line
  • Perforation machine
  • MgO board production line
  • Mineral fiber board production line
