| Place of Origin: | Hebei, China (Mainland) |
| Brand Name: | Lvjoe |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 line |
|---|---|
| Price: | Negotiation |
| Packaging Details: | standard package |
| Delivery Time: | 2 Months |
| Supply Ability: | 10 lines per year |
| Type: | Full-automatic | Application: | Making Machine |
|---|---|---|---|
| Production Capacity: | 3 Million /6 Million/3 Million Sq Meter | Warranty: | 1 Year |
| Advantages: | Can Customize According To Your Requirements | Advantages2: | Engineer Available To Serve Machinery Over-seas After Sales |

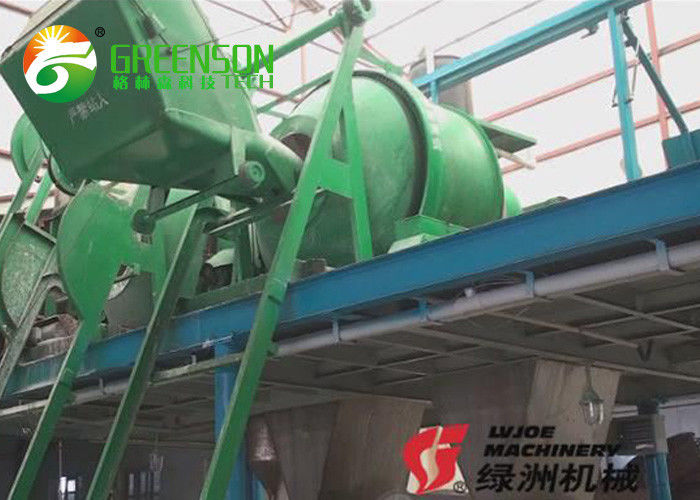

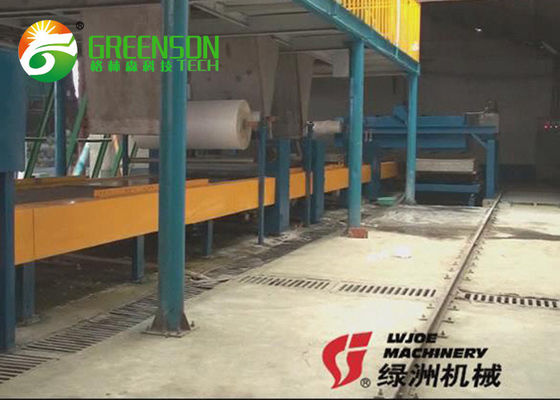

Mgo board production line
Mgo board machine adopts the automatic template device to save the labour cost. It also adopts automatic coating release agent system, by this way the release agent is evenly, less dosage and clean. Roller and forming roller precision is high that makes the board uniform thickness and smooth. Automatic cutting film system adopts fixed length cutting method, cutter does not hurt the template.
Technical parameter:
|
Effective laminating width
|
1300mm
|
|
Sheet thickness
|
5-30mm
|
|
Laminating speed
|
15m/min
|
|
Speed adjustment way
|
Frequency conversion synchronous speed regulating
|
|
Electrical control
|
PLC
|
|
Annual capacity
|
2-4 million Sq.m
|
|
Film material
|
PVC film, aluminum foils, decorative material, etc.
|
|
Board sheet material
|
PVC baseboard, gypsum board, wood board,sectional board, PVC foam board,etc
|
|
It can customize according to customer’s requirements.
|
|
Usage:
Gypsum ceiling board is laminated PVC film in front side and aluminum film in back side of paper faced gypsum board. The features are waterproof, moisture proof, flame resistant, thermal insulation,radiation proof, anti-sagging, non-deformed, etc.
Flowchart Of Full-automatic Laminating Machine
Automatic board feeding——pre dusting——coating——drying and conveying—— aluminium foil unwinding——pneumatic lamination for film and gypsum board——cutting——conveying——automatic overturn——coating——drying and conveying——PVCfilm unwinding——pneumatic lamination for film and gypsum board——cutting——drying and conveying——lengthwise cutting——horizontal cutting——belt conveyor output——autolift stacking conveying——stretch packing——conveying——lift(finished products stacking)
