Advanced Technology Fully Automatic Lamination Machine With High Capacity

Advanced Technology Fully Automatic Lamination Machine With High Capacity

Brand Name:	LVJOE
Model Number:	FM1300
MOQ:	1 line
Price:	US $20000-200000
Payment Terms:	L/C, T/T
Supply Ability:	10 lines peryear

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China(mainland)

Certification:

ISO CE

Application:

Board Lamination

Electric Control:

PLC System

Dimension(L*W*H):

12600*1950*1600mm

Effective Laminating:

1300mm

Experience:

15 Years

Speed:

2-15m/min (adjustable)

Warranty:

1 Year

After-sales Service:

Engineers Available To Service Overseas

Packaging Details:

Standard package

Supply Ability:

10 lines peryear

Highlight:

heat shrink packing machine

full automatic shrink wrapping machine

Product Description

Advanced Technology Full-automatic Lamination Machine With High Capacity

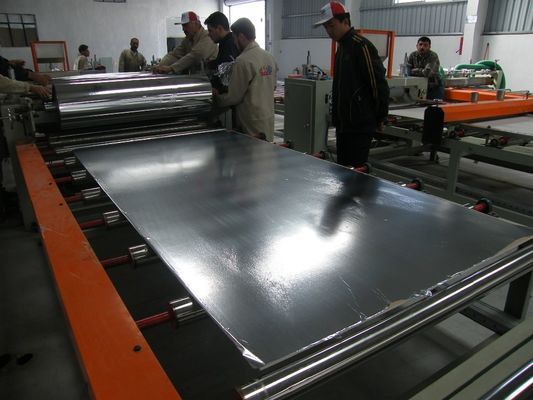

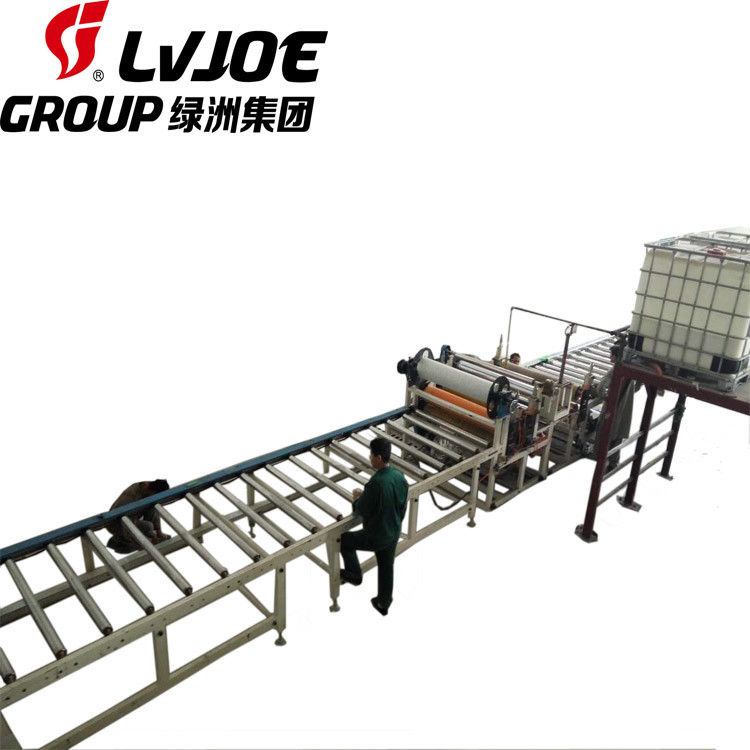

Gypsum board lamination machine is to laminate fiber glass, paper, PVC film and aluminum foil on gypsum board,the finished products can be used as ceiling tile and partition wall panel.

Flowchart of making gypsum ceiling boardl:

Automatic board feeding——pre dusting——coating——drying and conveying—— aluminium foil unwinding——pneumatic lamination for film and gypsum board——cutting——conveying——automatic overturn——coating——drying and conveying——PVCfilm unwinding——pneumatic lamination for film and gypsum board——cutting——drying and conveying——lengthwise cutting——horizontal cutting——belt conveyor output——autolift stacking conveying——stretch packing——conveying——lift(finished products stacking)

Features of this Gypsum Ceiling Tile Production Line:

1) Different automatic levels for your choice.
2) Adopting world famous brand Siemens PLC control system.
3) High capacity of 4-8 million sqm per year.
4) Raw materials: Gypsum board, PVC film, Aluminum foil, glue
5) Effective laminating width: Max 1300mm
6) Sheet thickness: 5—30mm
7) Laminating speed: Max 15m/min
8) Speed adjust way: frequency conversion synchronous speed regulating

lamination machine technical parameters:

Model	LV--1300SFM01 LV--1300SFM02 LV--1300SFM03
Max. laminating width	1300mm
Thickness of sheet	5----30mm
Max. Laminating Speed	15m/min
Speed Regulation	Frequency conversion synchronous speed regulating

Contace way:

Email:17732172215@sina.cn

Wechat and telephone:17732172215
