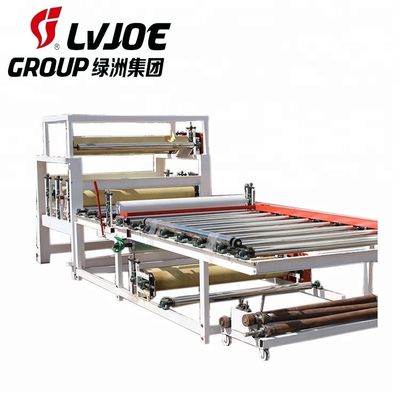

Easy To Install Fully Automatic Lamination Machine For Decorative Gypsum Board

Easy To Install Fully Automatic Lamination Machine For Decorative Gypsum Board

Brand Name:	LVJOE
Model Number:	FM1300
MOQ:	1 Line
Price:	US $20000-200000
Payment Terms:	L/C,T/T
Supply Ability:	10 lines per year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China(mainland)

Certification:

CE ISO

Features:

High Automatic

Electric Control:

PLC System

Voltage:

380V, 50HZ

Experience:

15 Years

Dimension(L*W*H):

12600*1950*1600mm

Warranty:

1 Year

Speed:

2-15m/min (adjustable)

After-sales Service:

Engineers Available To Service Overseas

Packaging Details:

Standard package

Supply Ability:

10 lines per year

Highlight:

heat shrink packing machine

full automatic shrink wrapping machine

Product Description

Easy To Install Fully Automatic Lamination Machine For Decorative Gypsum Board

Product Specifications

Attribute	Value
Electric Control	PLC system
Features	High automatic
Voltage	380V, 50HZ
Experience	15 Years
Dimension (L×W×H)	12600×1950×1600mm
Warranty	1 Year
Speed	2-15m/min (adjustable)
After-sales Service	Engineers available to service overseas

Product Overview

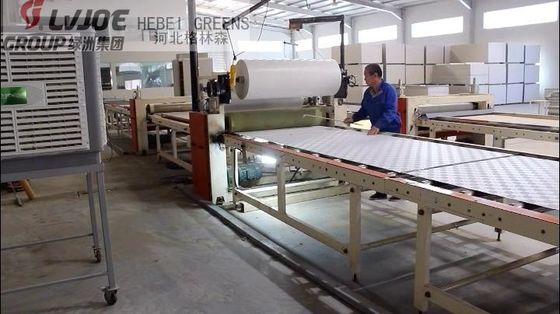

This fully automatic laminating machine is designed for applying decorative films to gypsum boards and similar materials. The resulting laminated boards feature:

High waterproof and moisture resistance
Flame and heat resistance
Thermal insulation properties
Radiation protection
Anti-sagging and deformation resistance

Laminated gypsum boards are durable, non-toxic construction materials that help regulate indoor temperature while maintaining human health. These premium green building materials are ideal for public spaces including shopping malls and transportation stations.

Production Process

Automatic board feeding → Pre-dusting → Coating → Drying and conveying → Aluminium foil unwinding → Pneumatic lamination → Cutting → Conveying → Automatic overturn → Coating → Drying and conveying → PVC film unwinding → Pneumatic lamination → Cutting → Drying and conveying → Lengthwise cutting → Horizontal cutting → Belt conveyor output → Auto-lift stacking → Stretch packing → Conveying → Finished products stacking

Technical Parameters

Parameter	Specification
Effective laminating width	1300mm
Sheet thickness	5-30mm
Laminating speed	15m/min
Speed adjustment	Frequency conversion synchronous speed regulating
Electrical control	PLC
Annual capacity	2-4 million
Film materials	PVC film, aluminum foils, decorative paper, etc.
Board materials	PVC baseboard, gypsum board, wood board, PVC foam board, sectional board

Note: Custom configurations available to meet specific customer requirements.
