products details

Home Products

Mineral Fiber Ceiling Board Machine

12mm Acoustic Fully Automatic Mineral Fiber Ceiling Board Production Line

Name

12mm Acoustic Fully Automatic Mineral Fiber Ceiling Board Production Line

Brand Name:	GREENS
Model Number:	KM
MOQ:	1 line
Price:	US $2000000-3000000
Supply Ability:	5 lines per year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei China

Certification:

ISO CE

Features:

Light Weight, High Density, High Strength, Fiber Strength

Color:

Choose

Raw Materials:

Granulated Wool, Starch And So On

Advantages:

High Efficent

Characters:

Fireproof, Heat Insulation, Waterproof, Mould Proof, Etc

Place Of Origin:

Hebei Province

Packaging Details:

Standard package for export or as per requirement

Supply Ability:

5 lines per year

Highlight:

mineral wool sandwich panel production line

,

mineral wool sandwich panel production line

Product Description

12mm Acoustic Fully Automatic Mineral Fiber Ceiling Board Production Line

Product Specifications

Attribute	Value
Color	Choose
Raw materials	granulated wool, starch and so on
Advantages	High Efficient
Characteristics	Fireproof, heat insulation, waterproof, mould proof
Features	Light weight, high density, high strength, fiber strength
Place of origin	Hebei province

Product Description

12mm Acoustic Fully Automatic Mineral Fiber Ceiling Board Production Line

Mineral wool board/mineral fiber board production line

Raw material consumption (based on board with thickness of 12mm)

Name	Consumption
Waste paper	0.45Kg/㎡
Mineral fiber	2Kg/㎡
Perlite	1.8Kg/㎡
Desiccant	0.1Kg/㎡
Starch	0.5Kg/㎡
Back coating	0.1Kg/㎡
Fiber glass	0.05Kg/㎡
Electricity consumption	0.6-0.8Kwh/㎡
Gas consumption	0.7m³/㎡
Water consumption	5-6Kg/㎡

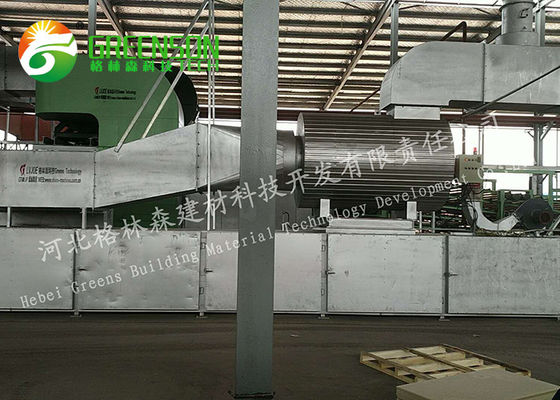

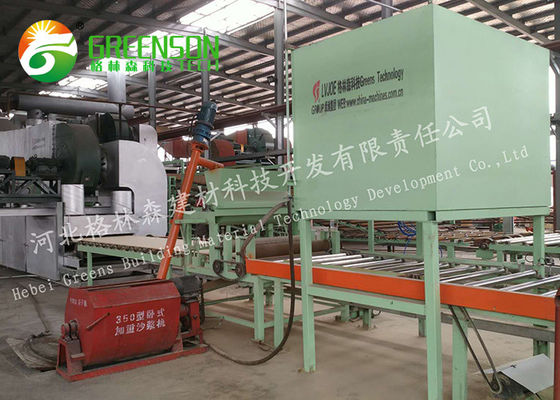

The mineral fiber board production line includes:

Raw material mixing system
Fourdrinier forming system and vacuum pump system
Water cutting system
Accelerating conveying system
Lifting distribution system
Board feeding system
Drying system
Hot air circulating system
Board releasing system
Board over-turning system
Puttying system
Small drying system I
Coating system
Small drying system II
Embossing system
Small drying system III
Cutting system
Dust collecting system
Packing stacking system
Control system

12mm Acoustic Fully Automatic Mineral Fiber Ceiling Board Production Line 0
