Fully Automatic Fireproof Mineral Rock Wool Board Production Line

Fully Automatic Fireproof Mineral Rock Wool Board Production Line

Brand Name:	GREENS
Model Number:	KM
MOQ:	1 line
Price:	US $2000000-3000000
Supply Ability:	5 lines per year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei China

Certification:

ISO CE

Features:

Light Weight, High Density, High Strength, Fiber Strength

Color:

Choose

Main Process:

Mixing, Forming

Type:

Ful-automation

Characters:

Fireproof, Heat Insulation, Waterproof, Mould Proof, Etc

Place Of Origin:

Hebei Province

Packaging Details:

Standard package for export or as per requirement

Supply Ability:

5 lines per year

Highlight:

mineral wool sandwich panel production line

Product Description

Fully Automatic Fireproof Mineral Rock Wool Board Production Line

Brief Introduction of Mineral fiber board

Mineral fiber board generally refers to mineral fiber decorative acoustic board. It is a new type of environmentally-friendly building materials processed by batching, forming, drying, cutting, embossing, and decorative. The raw materials are granular cotton and other additives. Mineral fiber board has a variety of functions such as decoration, sound absorption, heat preservation, heat insulation, fire prevention, and lightness. The surface has effects such as knurling and embossing. Patterned mineral fiber board has gypsophila, caterpillar, cross flower, center flower, walnut pattern, stripe pattern and so on. It is non-asbestos, harmless to the human body, and has anti-sag function. The surface can be painted with a variety of colorants (factory products are generally white).

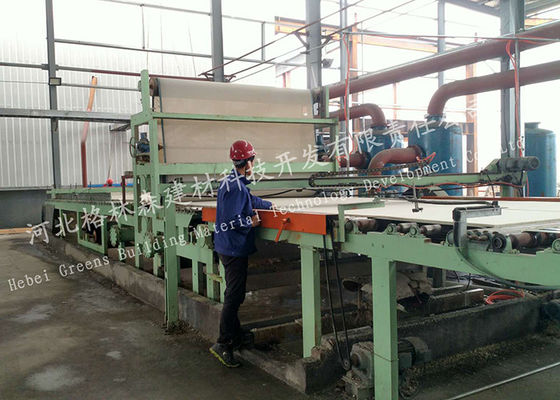

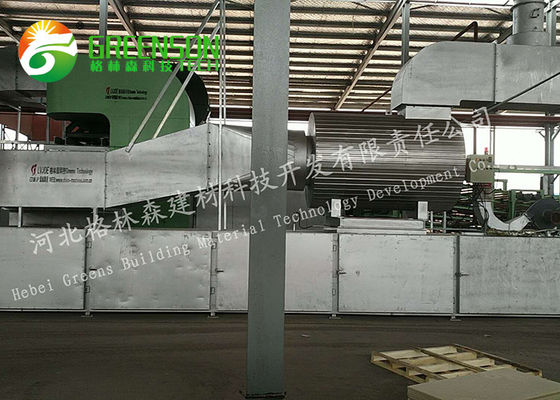

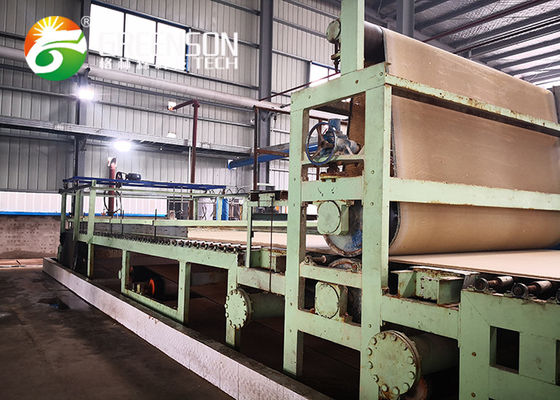

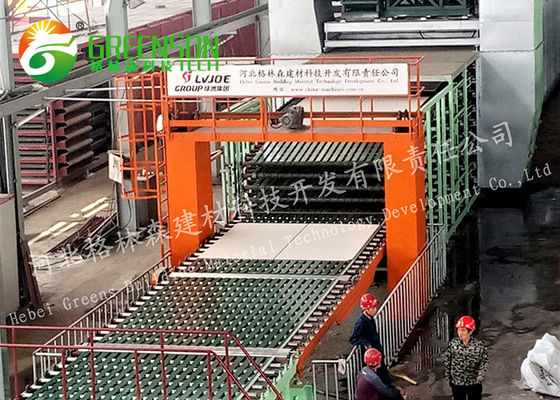

The mineral fiber board production line includes raw material mixing system, fourdrinier forming system and vacuum pump system, water cutting system, accelerating conveying system, lifting distribution system, board feeding system, drying system, hot air circulating system, board releasing system, board over-turning system, puttying system, small drying systemI, coating system, small drying systemII, embossing system, small drying systemIII, cutting system, dust collecting system, packing stacking system, control system.

Mineral wool board/mineral fiber board production line

Raw material consumption

(based on board with thickness of 12mm)

Name	Consumption
Waste paper	0.45Kg/㎡
Mineral fiber	2Kg/㎡
Perlite	1.8Kg/㎡
Desiccant	0.1Kg/㎡
Starch	0.5Kg/㎡
Back coating	0.1Kg/㎡
Fiber glass	0.05Kg/㎡
Electricity consumption	0.6-0.8Kwh/㎡
Gas consumption:	0.7m³/㎡
Water consumption:	5-6Kg/㎡
