Automatic Production Line to Make Vinyl Laminated Gypsum Ceiling Tiles

Automatic Production Line to Make Vinyl Laminated Gypsum Ceiling Tiles

Brand Name:	LVJOE
Model Number:	FMZ1300
MOQ:	1 line
Price:	US $20000-200000
Payment Terms:	L/C, T/T
Supply Ability:	10 lines per year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China(mainland)

Certification:

CE ISO

Condition:

New

Experience:

15 Years

Application:

Board Lamination/ceiling Production

Dimension(L*W*H):

18m*2.5m*4.5m

Electric Control:

PLC Control

Warranty:

1 Year

Weight:

10T

After-sales Service:

Engineers Available To Service Overseas

Packaging Details:

Standard package

Supply Ability:

10 lines per year

Highlight:

heat shrink packing machine

full automatic shrink wrapping machine

Product Description

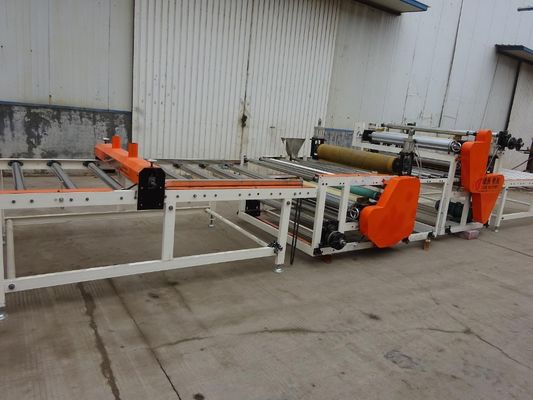

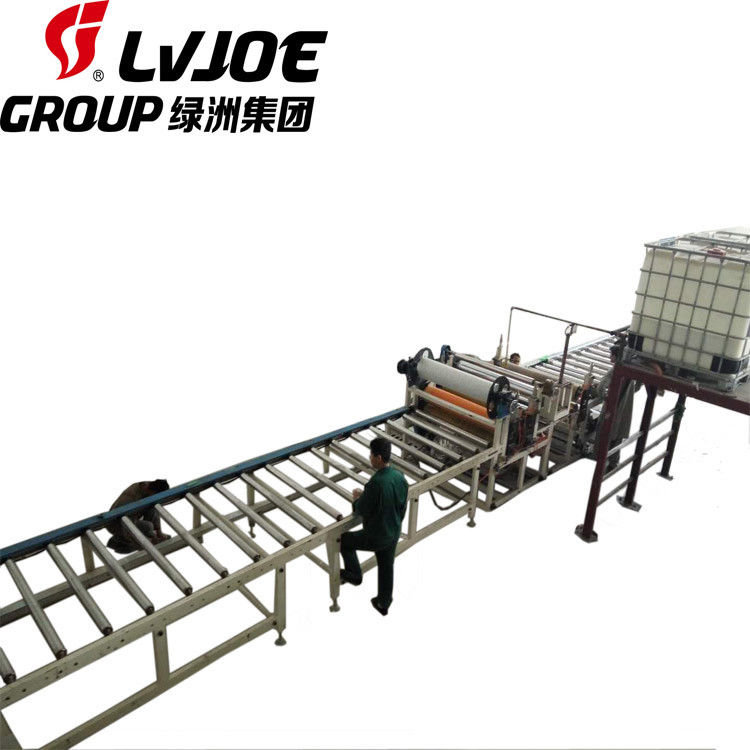

Automatic Production Line to Make Vinyl Laminated Gypsum Ceiling Tiles

This model adopts latest double sides coating and laminating technology, synchronous coating and gluing the front(such as PVC film) and the reverse side(such as aluminum foils) at the same time without turn-over. The product includes two sets of coating laminating all-in-one machine and electric control adopts PLC system to control.

Flowchart of Full-automatic Laminating Machine

Automatic board feeding——pre dusting——coating——drying and conveying—— aluminium foil unwinding——pneumatic lamination for film and gypsum board——cutting——conveying——automatic overturn——coating——drying and conveying——PVCfilm unwinding——pneumatic lamination for film and gypsum board——cutting——drying and conveying——lengthwise cutting——horizontal cutting——belt conveyor output——autolift stacking conveying——stretch packing——conveying——lift(finished products stacking)

Advantages:

1.Healthy and environmental
2.Various pattern, plentiful texture and complete color
3.No dust fall, moistureproof, mould proof
4.Easy to clean and maintain
5.Easy to operate and no need of second decoration

6.This laminate line includes automatic film cutting device, save manpower.

Laminating parameters:

Effective Laminate Width	Max 1300mm
Thickness of Sheet	5-30mm
Laminate Speed	3- 15m/min
Speed Adjust Mode	Frequency conversion synchronous speed regulating
Board feeding and releasing mode	automatic or manual
Film cutting mode	automatic or manual
Total Power	8-20 KW

Contact way:

Email: 17732172215@sina.cn

Wechat and Telephone: 17732172215
