products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fully Automatic Lamination Machine
Created with Pixso.

PVC Film, Fiber Glass Mat, Aluminium Foil Laminating Machine for Gypsum Plaster Board Sheet

Name

PVC Film, Fiber Glass Mat, Aluminium Foil Laminating Machine for Gypsum Plaster Board Sheet

Brand Name: LV JOE
MOQ: 1 Line
Price: US $20000-200000
Supply Ability: 10 Lines per year
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei, China (Mainland)
Certification:
ISO CE SGS
Weight:
10T
Voltage:
380V, 50HZ
Power(W):
30KW To 100KW
Dimension(L*W*H):
12600*1950*1600mm
Speed:
2-15m/min (adjustable)
Electric Control:
PLC System
Packaging Details:
standard package
Supply Ability:
10 Lines per year
Highlight:

heat shrink packing machine

,

automatic packing machine

Product Description
PVC Film, Fiber Glass Mat, Aluminium Foil Laminating Machine for Gypsum Plaster Board Sheet
Product Specifications
Attribute Value
Weight 10T
Voltage 380V, 50HZ
Power 30KW to 100KW
Dimension (L*W*H) 12600*1950*1600mm
Speed 2-15m/min (adjustable)
Electric Control PLC system
Product Description
Our PVC gypsum ceiling tile is manufactured using paper-faced gypsum board with a PVC surface layer and aluminum foil backing. This environmentally friendly decorative ceiling board offers lightweight construction, excellent fireproof and waterproof properties, and corrosion resistance. The easy-to-clean surface accepts custom patterns, making it ideal for high-performance environments including hotels, restaurants, shopping malls, theaters, and commercial buildings.
Standard Sizes (mm)
  • 595*595 *7.0, 7.5, 8.0
  • 603*603 *7.0, 7.5, 8.0
  • 600*1200*7, 7.5, 8.0
Gypsum Ceiling Board Lamination Machine
This specialized machine laminates fiber glass, paper, PVC film, and aluminum foil onto gypsum boards with precision. The system features a maximum lamination width of 1300mm and accommodates standard gypsum board sizes of 1220*2440mm. Using specialized adhesives for PVC film and aluminum foil, it operates at speeds of 2-15m/min and handles sheet thicknesses from 2-50mm.

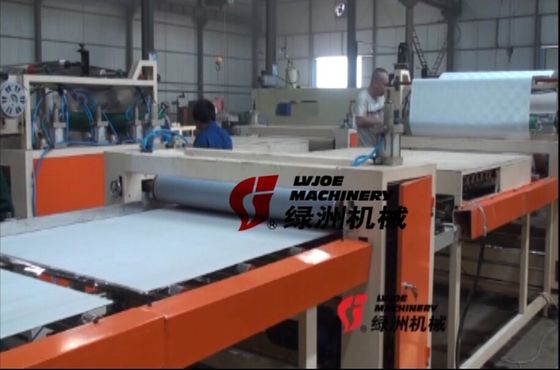

PVC Film, Fiber Glass Mat, Aluminium Foil Laminating Machine for Gypsum Plaster Board Sheet 0
Automatic Feeding Machine
Available in push-type or suction-type configurations, our automatic feeding system features cylinder push operation with photoelectric control (maximum cylinder range 700mm). The push board platform uses rubber roller rolling transmission for accelerated speed, offering an economical and user-friendly feeding solution.

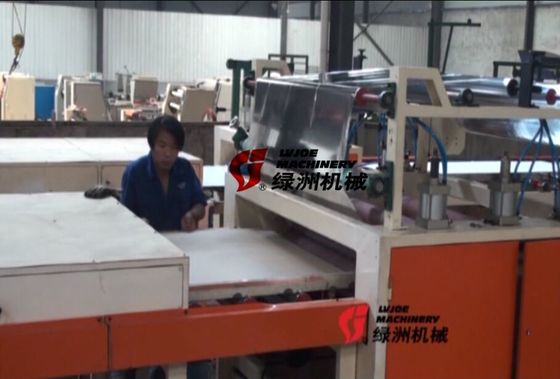

PVC Film, Fiber Glass Mat, Aluminium Foil Laminating Machine for Gypsum Plaster Board Sheet 1
Automatic Cutting Machine
This precision cutting system processes laminated gypsum boards to exact specifications. The dual cutting system ensures accurate sizing according to saw gauge standards, with optional pulsed sack-duster configurations available.
Automatic Sealing Machine
Our right-angle gypsum board sealing machine provides high-speed, high-capacity edging with PLC photoelectric automatic control. The system produces tight, firm edges with minimal equipment investment, making it the preferred choice for plasterboard hemming applications.
For more information, please contact:
Laity Li
Wechat: 15612192036
