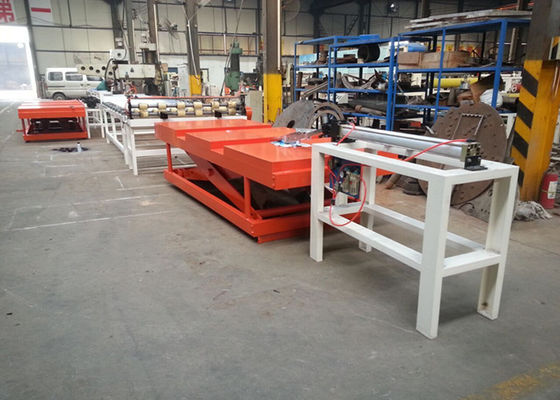

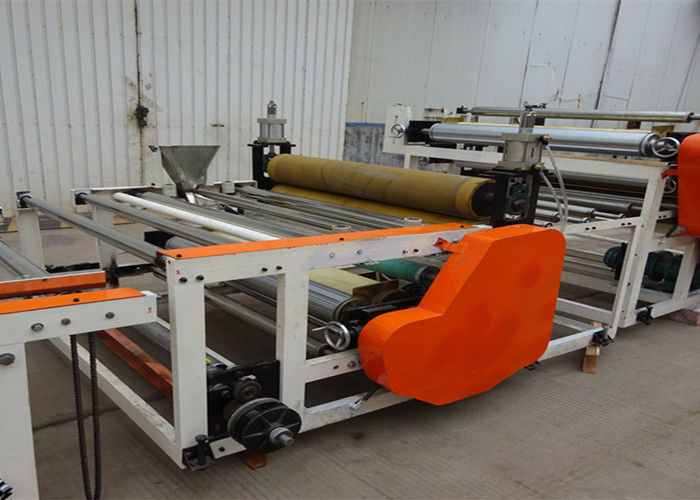

LVJOE FM1300 Gypsum Board Lamination Machine PLC System Control

Name: LVJOE FM1300 Gypsum Board Lamination Machine PLC System Control
Brand: Hebei Greens Building Material Technology Development Co.,Ltd
SKU: FM1300
Price: 110,000.00 USD
Availability: InStock

Brand Name:	LVJOE
Model Number:	FM1300
MOQ:	1 Line
Price:	US $20000-200000
Payment Terms:	L/C, T/T
Supply Ability:	1 Set per two Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China (Mainland)

Certification:

CE ISO

Features:

Easy Operation

Voltage:

380V/220V/415V

Warranty:

12 Months

Package Type:

Wooden Case

Brand:

LVJOE

Dimension(L*W*H):

12600*1950*1600mm

Packaging Details:

Wooden Case

Supply Ability:

1 Set per two Month

Highlight:

magnesium oxide board production line

gypsum ceiling production line

Product Description

LVJOE FM1300 Gypsum Board Lamination Machine PLC System Control

Product Specifications

Attribute	Value
Voltage	380V/220V/415V
Warranty	12 Months
Package Type	Wooden Case
Features	Easy Operation
Brand	LVJOE
Dimension (L×W×H)	12600×1950×1600mm

Product Overview

The LVJOE FM1300 is a double-sided PVC film lamination machine with PLC system control, designed for applying decorative films (PVC film, aluminum foil, wood grain) to gypsum board, MDF, or PVC foam board. The resulting PVC gypsum ceiling tiles feature a PVC surface layer and aluminum foil backing, offering an environmentally friendly, lightweight solution with excellent fireproof, waterproof, and corrosion-resistant properties.

Production Process

Complete Workflow: Automatic board feeding → Aluminum foil lamination → PVC film lamination → Lengthwise cutting → Horizontal cutting → Edge tapping → Stretch packing → Finished product stacking

Technical Specifications

Parameter	Value
Effective laminating width	≤1300mm
Sheet thickness	5-30mm
Laminating speed	15m/min
Speed adjustment	Frequency conversion synchronous speed regulating
Installed power	22kw

Key Features

Operation modes: Fully automatic, semi-automatic, or manual
Siemens PLC control system for precision operation
High production capacity: 2-8 million sqm annually
Compatible materials: Gypsum board, PVC film, Aluminum foil, PVAC glue, tape
Finished board sizes: 600×600mm, 595×595mm, 603×603mm

Applications

Ideal for environments requiring high fireproof and waterproof standards, including hotels, hospitals, schools, residential buildings, and industrial facilities.

Manufacturer Information

HEBEI LVJOE MACHINERY MANUFACTURING CO.,LTD, established in 1998, specializes in building material machinery. As a certified high-tech enterprise, we hold national patents, CE certification, and ISO9001 quality system certification, recognized as a municipal civilized and creditable unit in Hebei Province.
