Low Cost Plaster Board PVC and PET Laminating Line with Cutting and Packing System

Low Cost Plaster Board PVC and PET Laminating Line with Cutting and Packing System

Brand Name:	LVJOE
Model Number:	LV-1300FM
MOQ:	1 Line
Price:	US $20000-200000
Supply Ability:	10 Lines per year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China (Mainland)

Certification:

ISO CE SGS

Features:

High Automatic

Weight:

10T

Voltage:

380V, 50HZ

Power:

30KW To 100KW

Automatic Grade:

Automatic

Production Capacity:

2-4 Million Sq.m/year

Packaging Details:

standard package

Supply Ability:

10 Lines per year

Highlight:

gypsum board feeding machine

gypsum board hurting machine

Product Description

Low Cost Plaster Board PVC and PET Laminating Line with Cutting and Packing System

Gypsum board lamination machine is to laminate fiber glass, paper, PVC film and aluminum foil on gypsum board,the finished products can be used as ceiling tile and partition wall panel.

1.Capacity:

7000-20000m2 per day

(basis of calculation: L:595mm, T:7mm, W:595mm, weight: 5.5 kg/M2, for 7mm board)

2.Automation

simple and high degree automatic

3.Main materials

Gypsum board , PVC film, aluminum foil, glue for PVC, glue for aluminum

4.Dimension of product

Length*Width:595*595mm,600*600mm,603*603mm,1200*600mm

Thickness:7.0mm, 7.5mm, 8.0mm,8.5mm 9.0mm

lamination machine technical parameters:

Model	LV--1300SFM01 LV--1300SFM02 LV--1300SFM03
Max. laminating width	1300mm
Thickness of sheet	5----30mm
Max. Laminating Speed	15m/min
Speed Regulation	Frequency conversion synchronous speed regulating

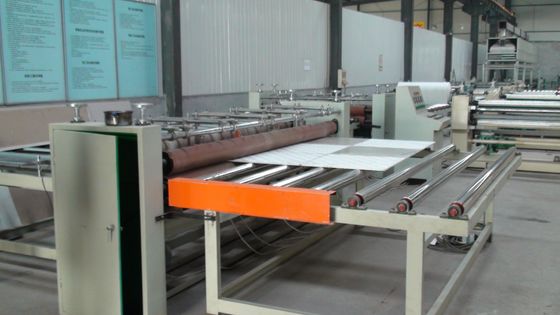

1. gypsum ceiling board lamination machine line:

Gypsum board lamination machine is to laminate fiber glass or paper or PVC film and aluminum foil, on gypsum board

lamination width: 1220mm

gypsum board size: 1220*2440mm

glue: specific glue for pvc film and aluminum foil

max sheet speed: 2/15m/min

thickness of sheet: 2-50mm

motor power: 4.5kw coating and lamination part are driven by chain wheel.

Low Cost Plaster Board PVC and PET Laminating Line with Cutting and Packing System 0

2. Automatic feeding machine

1. push-type 2. suction-type Two types for choice

Cylinder push, photoelectric control, Max.Cylinder range 700mm. Through the push board platform rubber roller rolling transmission to accelerate speed,with the feature of low cost,economic and affordable (comparing to the suction type),easy to operate,fully automatic feeding.

3. Automatic cutting machine

This machine is used for cutting the laminated gypsum boards to a size of board according to saw gauge standard. First, put board to delivery roll, then come to the cutting system for the first time, and it turns to cutting system for the second time though delivery roll, then come to the board. It can be made a set of pulsed sack-duster for requirements.
