Advanced Technology Double Side Gypsum Board PVC And Aluminum Foil Laminated Machine

1.Capacity:

7000-20000m2 per day

(basis of calculation: L:595mm, T:7mm, W:595mm, weight: 5.5 kg/M2, for 7mm board)

2.Automation

simple and high degree automatic

3.Main materials

Gypsum board , PVC film, aluminum foil, glue for PVC, glue for aluminum

4.Dimension of product

Length*Width:595*595mm,600*600mm,603*603mm,1200*600mm

Thickness:7.0mm, 7.5mm, 8.0mm,8.5mm 9.0mm

lamination machine technical parameters:

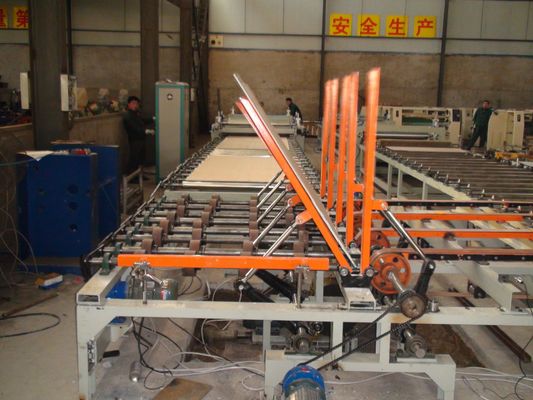

1. gypsum ceiling board lamination machine line:

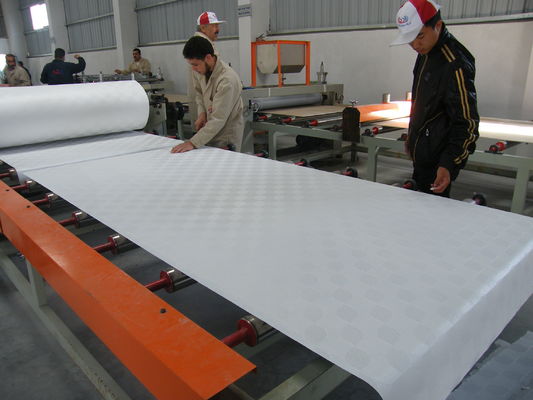

Gypsum board lamination machine is to laminate fiber glass or paper or PVC film and aluminum foil, on gypsum board

lamination width: 1220mm

gypsum board size: 1220*2440mm

glue: specific glue for pvc film and aluminum foil

max sheet speed: 2/15m/min

thickness of sheet: 2-50mm

motor power: 4.5kw coating and lamination part are driven by chain wheel.

2. Automatic feeding machine

1. push-type 2. suction-type Two types for choice

Cylinder push, photoelectric control, Max.Cylinder range 700mm. Through the push board platform rubber roller rolling transmission to accelerate speed,with the feature of low cost,economic and affordable (comparing to the suction type),easy to operate,fully automatic feeding.

3. Automatic cutting machine

This machine is used for cutting the laminated gypsum boards to a size of board according to saw gauge standard. First, put board to delivery roll, then come to the cutting system for the first time, and it turns to cutting system for the second time though delivery roll, then come to the board. It can be made a set of pulsed sack-duster for requirements.

4. Automatic sealing machine

right angle type gypsum board sealing machine

This machine is a gypsum board ceiling decoration edging equipment, PLC photoelectric automatic control, high speed, high capacity. Edging tight and firm. Less investment in equipment and quick. It is a board(plasterboard), Hemming preferred equipment.

5. Automatic shrinking machine

Heat shrinking machine doing the heats shrinkable packaging for gypsum board after the

completion of the sealing and cutting edge, using infrared ray heating for the film contraction.
