Cutting Machine of PVC Laminated Gypsum Plasterboard to 2*2 Ceiling Tiles

Cutting Machine of PVC Laminated Gypsum Plasterboard to 2*2 Ceiling Tiles

Brand Name:	LV JOE
Model Number:	LV-JB01
MOQ:	1 Line
Price:	US $20000-200000
Supply Ability:	10 Lines per year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China (Mainland)

Certification:

ISO CE

Features:

Easy Operation

Brand Name:

Lvjoe Brand

Voltage:

380V/50HZ

Warranty:

1 Year

Production Capacity:

15m/min

Power:

17.15KW

Packaging Details:

standard package

Supply Ability:

10 Lines per year

Highlight:

gypsum board feeding machine

gypsum board hurting machine

Product Description

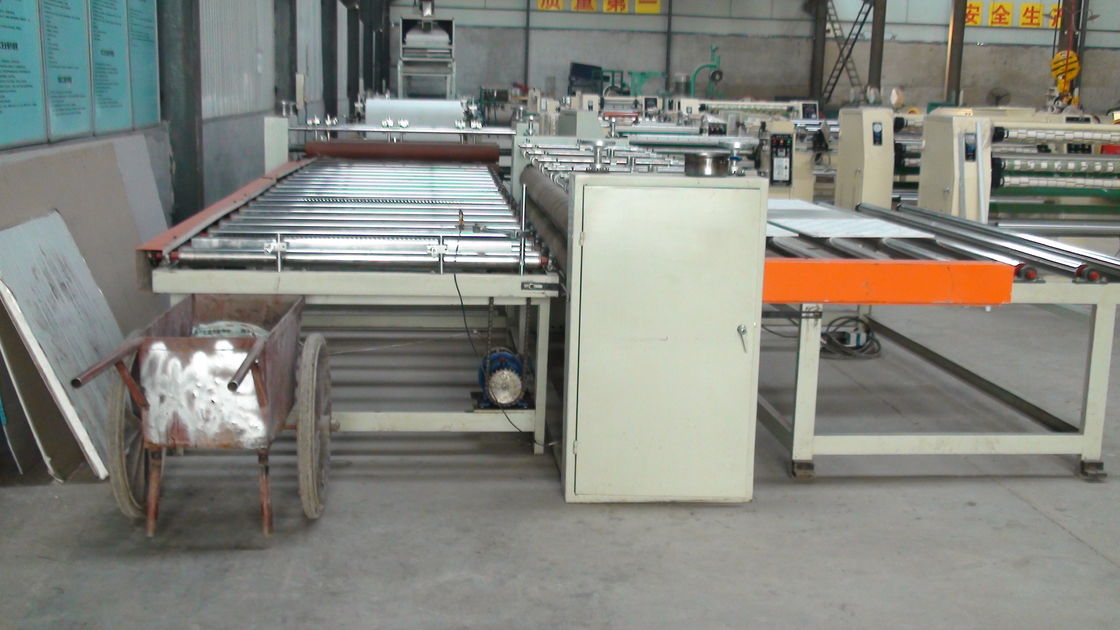

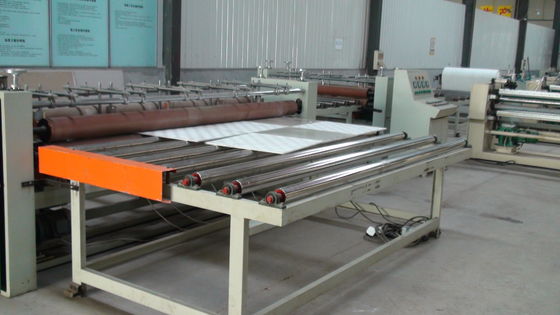

Cutting Machine of PVC Laminated Plasterboard to 2*2 Ceiling Tiles

This equipment is used to cut the laminated calcium silicate board/ gypsum board/ mgo board from 4'*8' to 2'*2' according to the decorative specification.
First, put the boards on the conveying rollers, then go to the first cutting device. After passing the second cutting device, the board will be formed.
It consists of slitting and crossing-cutting automatic cutting equipment, equipped with the dust exhausting system. In the process of cutting, the electric impulse style dust collector recycles the dust, reaching the purpose of the dust exhausting efficiently.

Click for more information!!!

Technical Parameters:

Product name	cutting machine
Size of finished board	300300, 595595, 603603, 600600, 400*600 mm etc
Cutting speed	15m/min
Cutting knife	three in portrait, five in lateral
Overall power	17.15KW
Speed regulation	frequency conversion synchronous speed regulating

Click for more information!!!
