Sheet Perforation Machine
Created with Pixso.

Round / Square Hole Perforated Metal Sheet Machine 200T Pressure MDF / HPL Punch Machine

Name

Round / Square Hole Perforated Metal Sheet Machine 200T Pressure MDF / HPL Punch Machine

Brand Name: LVJOE
Model Number: LV-CK01
MOQ: 1 set
Price: US $20000-80000
Supply Ability: 50 sets per year
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO CE SGS
Pressure:
80T, 160T, 200T
Usage:
Gypsum Board, MDF, HPL, Fiber Cement Board Perforation
Holes:
Round, Square
Automatic Level:
High Automatic
Thickness:
Max. 20mm
Packaging Details:
PE film wrapped
Supply Ability:
50 sets per year
Highlight:

Round Hole Perforated Metal Sheet Machine

,

MDF Perforated Metal Sheet Machine

,

Square Hole Sheet Metal Perforating Machine

Product Description
Round/Square Hole Perforated Metal Sheet Machine 200T Pressure MDF/HPL Punch Machine
Key Specifications
Attribute Value
Pressure 80T, 160T, 200T
Usage Gypsum Board, MDF, HPL, Fiber cement board perforation
Holes Round, Square
Automatic level High automatic
Thickness Max. 20mm
Technical Specifications
  • Punching pressure: 200 ton
  • Stroke: 30 mm
  • Max mold height closed: 260mm
  • Number of strokes: 50 times/minute
  • Slide surface: 210*1100mm
  • Working table: 300*1670mm
  • Spacing of both pole: 1350mm (load the max board width 1220mm)
  • Power of main motor: 22kw
  • Power of servo motor: 2.6kw (brand: Zhejiang yifeng)
  • Feeding accuracy: ±1mm
  • Maximum feeding rate: 100mm
  • Maximum feeding thickness: 20mm
  • Gross weight of machine: 11000kg
  • Overall dimension: 2300*1500*2300(H*L*W)
Applications

This high-performance perforation machine is designed for creating precision holes in various materials including:

  • Gypsum ceiling board
  • MgO board
  • MDF (Medium Density Fiberboard)
  • HPL (High Pressure Laminate)
  • Fiber cement board
  • Metal sheet

The machine offers flexibility in hole shape selection and includes comprehensive operator training.

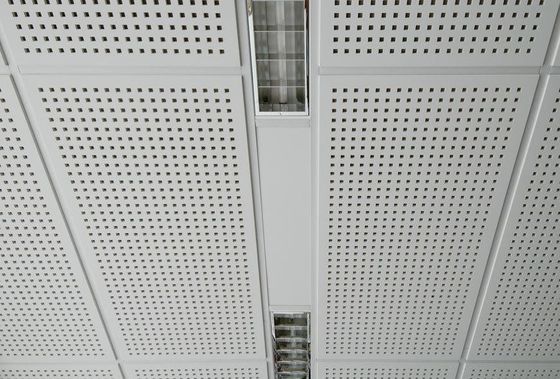

Finished Product Example
Round / Square Hole Perforated Metal Sheet Machine 200T Pressure MDF / HPL Punch Machine 0
