Oil Resistance Acid And Alkali Resistance Full Automatic Laminating Machine

Oil Resistance Acid And Alkali Resistance Full Automatic Laminating Machine

Brand Name:	LVJOE
Model Number:	1300FM03
MOQ:	1 Line
Price:	US $20000-200000
Payment Terms:	L/C, T/T
Supply Ability:	10 Set/Sets per Year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China (Mainland)

Certification:

ISO ce

Voltage:

380V

Power(W):

23kw

Lamination Speed:

15m/min

Effective Lamination With:

Less Than 1300mm

Eletrical Control:

PLC System

Sheet Thickness:

5-30mm

Packaging Details:

Wooden case

Supply Ability:

10 Set/Sets per Year

Highlight:

Plasterboard Lamination Machine

To Make Ceiling Tile Lamination Machine

Auto Gypsum Ceiling Board Lamination Machine

Product Description

Oil Resistance Acid And Alkali Resistance Full Automatic Laminating Machine

Product Specifications

Attribute	Value
Voltage	380V
Power	23kw
Lamination speed	15m/min
Effective lamination width	Less than 1300mm
Electrical control	PLC system
Sheet thickness	5-30mm

Key Features

Easy to install and disassemble
Full-automatic and semi-automatic operation modes
Energy efficient design reduces operational costs
Fast delivery available

Product Overview

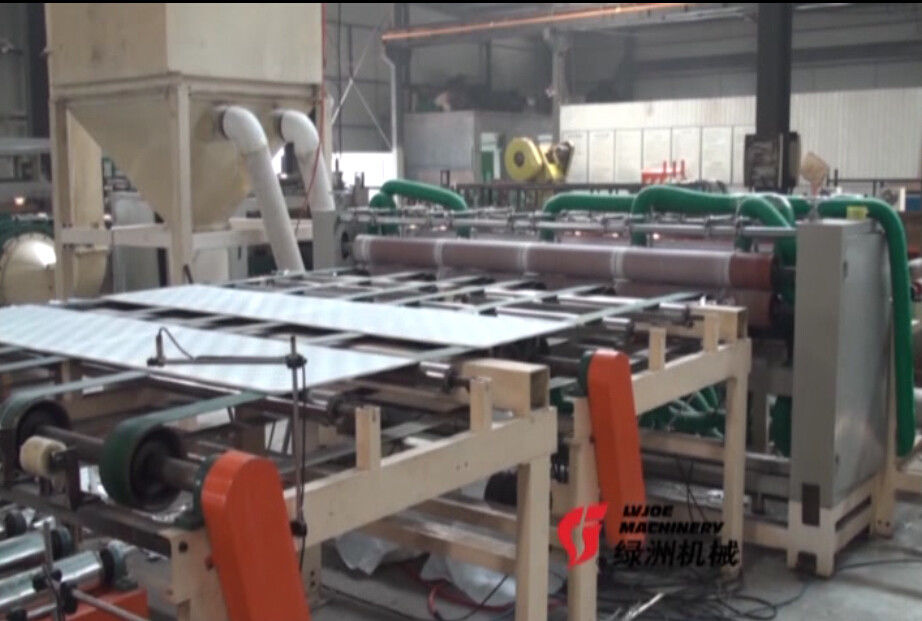

This advanced laminating machine incorporates the latest coating and laminating technology to bond functional or decorative films with boards. The entire system operates in perfect synchronization, delivering exceptional results.

Key benefits include waterproofing, moisture resistance, flame retardancy, thermal insulation, radiation protection, anti-sagging properties, and deformation resistance.

Technical Parameters

Model	1300FM03
Max. laminating width	1300mm
Thickness of sheet	5-30mm
Max. Laminating Speed	15m/min
Speed Regulation	Frequency conversion synchronous speed regulating
Installed power	22kw

Our Services

Professional installation and debugging teams ensure proper setup at your facility
Comprehensive one-year equipment warranty
Year-round technical support and consultation services
Assistance with import/export procedures and consignment
Supplier information for all required raw materials
