Gypsum Ceiling Tile Production Line
Created with Pixso.

Vinyl Gypsum Board Production Line , Aluminum Foil Gypsum Board Machine

Name

Vinyl Gypsum Board Production Line , Aluminum Foil Gypsum Board Machine

Brand Name: GREENS
Model Number: FM
MOQ: 1 Line
Price: US $20000-200000
Payment Terms: L/C, T/T
Supply Ability: 20 lines per year
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei China
Certification:
ISO CE
Features:
Easy To Operate
Product Name:
Machine Gypsum Board Cutting Machine
Warranty:
1 Year
Finished Board Size:
595*595 , 603*603, 600*1200mm
Certification:
ISO CE
Raw Material:
Pvc Film, Gypsum Board,aluminum Foil , Glue
Packaging Details:
1) Standards export packing which fit for long time delivery 2) Seaworthy packing.Use 20GP,40GP and 40HQ containers and frame containers
Supply Ability:
20 lines per year
Highlight:

gypsum board making machine

,

gypsum board feeding machine

Product Description
Vinyl Gypsum Board Production Line & Aluminum Foil Gypsum Board Machine
Product Specifications
Product Name Machine gypsum board cutting machine
Features Easy to operate
Warranty 1 year
Finished Board Size 595×595, 603×603, 600×1200mm
Certification ISO, CE
Raw Material PVC film, gypsum board, aluminum foil, glue
Vinyl Gypsum Ceiling Board Plasterboard Sawing Cutting Off Machine

This gypsum board cutting machine transforms standard 1220×2440mm boards into smaller dimensions of 595×595, 603×603, or 1200×600mm.

  • Capacity: 833 sqm/hour (based on L:595mm, T:7mm, W:595mm, weight: 5.5 kg/M² for 7mm board)
  • Automation: Optional automatic loading and unloading devices available
  • Main Materials: Gypsum board, PVC film, aluminum foil, PVC glue, aluminum glue

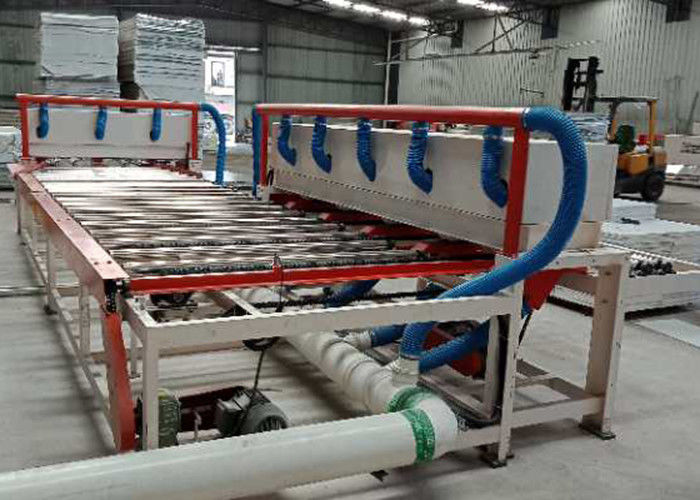

Gypsum Ceiling Board Lamination Machine Line

This specialized lamination machine applies film coatings to gypsum boards with precision and efficiency.

  • Lamination Width: 1220mm
  • Gypsum Board Size: 1220×2440mm
  • Glue Type: Special adhesive for PVC film and aluminum foil
  • Max Sheet Speed: 15m/min
  • Sheet Thickness Range: 2-50mm
  • Motor Power: 4.5kW (chain wheel driven coating and lamination)
Vinyl Gypsum Board Production Line , Aluminum Foil Gypsum Board Machine 0
