products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Gypsum Ceiling Tile Production Line
Created with Pixso.

PVC Laminated Gypsum Board Cutting Machine From 4 By 8 To 2 By 2

Name

PVC Laminated Gypsum Board Cutting Machine From 4 By 8 To 2 By 2

Brand Name: GREENS
Model Number: FM
MOQ: 1 Line
Price: US $20000-200000
Payment Terms: L/C, T/T
Supply Ability: 20 lines per year
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei China
Certification:
ISO CE
Features:
Easy To Operate
Product Name:
Machine Gypsum Board Cutting Machine
Warranty:
1 Year
Finished Board Size:
595*595 , 603*603, 600*1200mm
Certification:
ISO CE
Raw Material:
Pvc Film, Gypsum Board,aluminum Foil , Glue
Packaging Details:
1) Standards export packing which fit for long time delivery 2) Seaworthy packing.Use 20GP,40GP and 40HQ containers and frame containers
Supply Ability:
20 lines per year
Highlight:

gypsum board making machine

,

gypsum board hurting machine

Product Description
PVC Laminated Gypsum Board Cutting Machine From 4 By 8 To 2 By 2
Product Specifications
Product Name Machine gypsum board cutting machine
Features Easy to operate
Warranty 1 year
Finished Board Size 595×595mm, 603×603mm, 600×1200mm
Certification ISO, CE
Raw Material PVC film, gypsum board, aluminum foil, glue
Product Description

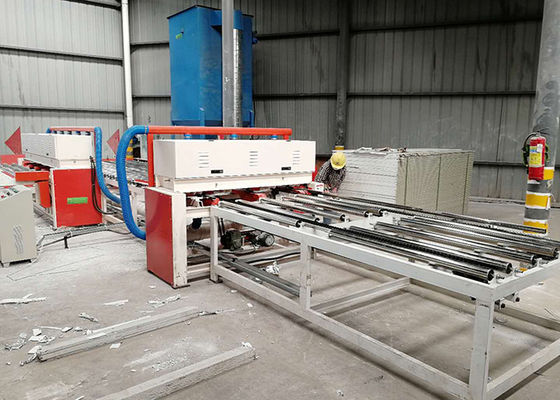

Automatic PVC Laminated Gypsum Ceiling Cutting Machine transforms standard 1220×2440mm gypsum boards into smaller dimensions including 595×595mm, 603×603mm, or 1200×600mm panels.

Key Features
  • Capacity: 833 sqm/hour (based on L:595mm, T:7mm, W:595mm, weight: 5.5 kg/M² for 7mm board)
  • Automation: Optional automatic loading and unloading devices available
  • Materials: Processes gypsum board, PVC film, aluminum foil, and specialized adhesives
Gypsum Ceiling Board Lamination Machine Specifications
  • Lamination width: 1220mm
  • Standard gypsum board size: 1220×2440mm
  • Specialized adhesives for PVC film and aluminum foil
  • Maximum sheet speed: 15m/min
  • Sheet thickness range: 2-50mm
  • Motor power: 4.5kW
  • Coating and lamination parts driven by chain wheel
PVC Laminated Gypsum Board Cutting Machine From 4 By 8 To 2 By 2 0
