Full Automatic Plasterboard Laminating Machine with FactoryPrice from Lvjoe Group

Full Automatic Plasterboard Laminating Machine with FactoryPrice from Lvjoe Group

Brand Name:	LVJOE
Model Number:	FM1300
MOQ:	1 line
Price:	US $20000-200000

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei Province, China

Certification:

CE ISO

Name:

Gypsum Board Lamination Machine

Advantages:

High Output, Economic

Capacity:

2 Million/year

Max Laminating Wid:

1300mm

Laminating Type:

Single Side And Double Side

Packaging Details:

Standard size

Highlight:

magnesium oxide board production line

building materials machinery

Product Description

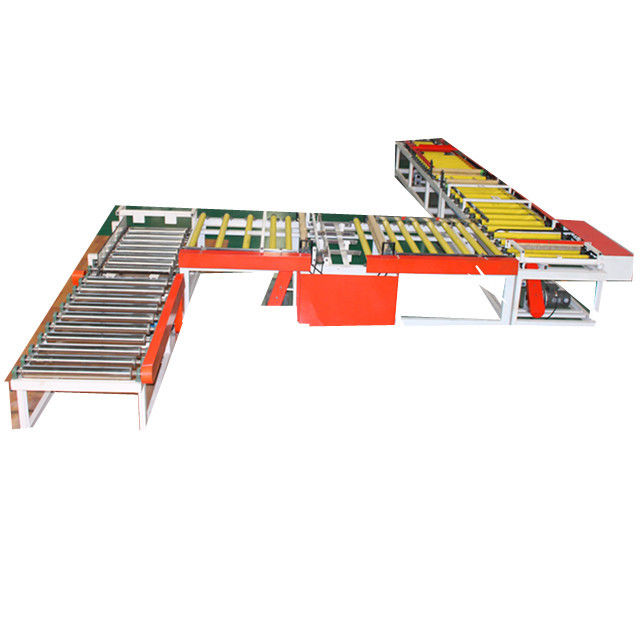

Full Automatic Plasterboard Laminating Machine

Factory Price from Lvjoe Group - High output, economic solution for gypsum board lamination.

Key Specifications

Attribute	Value
Product Name	Gypsum Board Lamination Machine
Maximum Laminating Width	1300mm
Laminating Types	Single side and double side
Annual Capacity	2 million sq.m/year

Product Overview

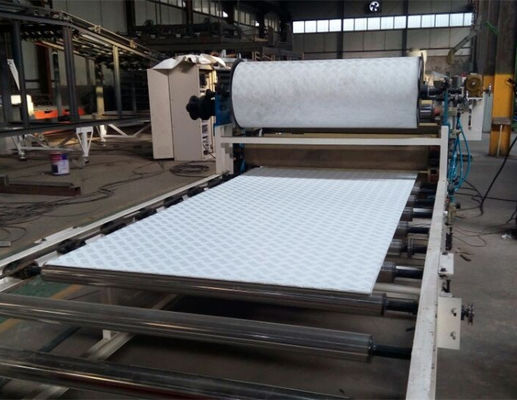

Our gypsum board lamination machine applies fiber glass, paper, PVC film and aluminum foil to gypsum boards, creating premium ceiling tiles and partition wall panels.

The machine produces durable, non-toxic materials that help regulate indoor temperature while promoting healthier environments. These green construction materials are ideal for commercial spaces like shopping malls and transportation stations.

Technical Specifications

Parameter	Value
Effective Laminating Width	1300mm
Sheet Thickness Range	5-30mm
Laminating Speed	15m/min
Speed Adjustment	Frequency conversion synchronous speed regulating
Electrical Control	PLC

Production Details

Daily Capacity: 7,000-12,000 m² (based on 595×595×7mm boards)
Automation Level: Simple operation with high automation
Material Compatibility: Gypsum board, PVC film, aluminum foil, and various adhesives
Product Dimensions: Multiple standard sizes available (595×595mm to 1200×600mm)
Thickness Options: 7.0mm to 9.0mm in 0.5mm increments

Contact Information

Contact: Zizi Li

Email: lvjoe01@china-machines.com.cn
