Automatic gypsum board ceilings making machine

Automatic gypsum board ceilings making machine

Brand Name:	LVJOE
Model Number:	Lvjoe-FM
MOQ:	1 line
Price:	US $20000-200000
Supply Ability:	10 line per year

Detail Information

Product Description

Detail Information

Place of Origin:

Shijiazhuang, Hebei province

Certification:

ISO CE

Raw Material:

Gypsum Board, PVC Film, Aluminum Foil, Glue

Place Of Origin:

Shijiazhuang, Hebei Province

Capacity:

2-6 Million Sqm

Speed Adjustment Way:

Frequency Conversion Synchronous Speed Regulating

Film Material:

PVC Film, Aluminum Foils, Decorative Material, Etc.

Laminating Speed:

15m/min

Packaging Details:

PE film packing

Supply Ability:

10 line per year

Highlight:

automatic packing machine

full automatic shrink wrapping machine

Product Description

Automatic Gypsum Board Ceilings Making Machine

Product Specifications

Attribute	Value
Raw Material	Gypsum board, PVC film, aluminum foil, glue
Place of Origin	Shijiazhuang, Hebei province
Capacity	2-6 million sqm
Speed Adjustment	Frequency conversion synchronous speed regulating
Film Material	PVC film, aluminum foils, decorative material, etc.
Laminating Speed	15m/min

Product Overview

Our gypsum board laminating machine uses specialized technology to bond films to paper-faced plasterboard surfaces through precise sticking and pressing processes. This creates unique visual effects ideal for personalized decoration requirements.

Key Features

Environmentally friendly and health-conscious production
Diverse patterns, rich textures, and complete color options
Dust-free, moisture-proof, and mold-resistant properties
Easy cleaning and maintenance
Simple operation with no secondary decoration needed

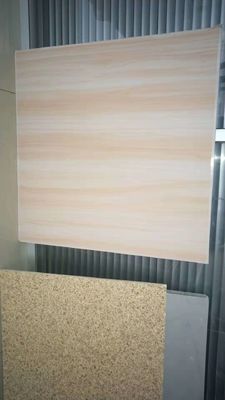

PVC film laminated gypsum board offers waterproof, fireproof, and soundproof advantages, making it widely used for ceilings and partition walls in commercial buildings, supermarkets, hospitals, movie theaters, and other public spaces.

Technical Specifications

Effective laminating width:

1300mm

Sheet thickness:

5-30mm

Laminating speed:

15m/min

Electrical control:

PLC

Annual capacity:

2-6 million Sq.m

Board sheet material:

PVC baseboard, gypsum board, wood board, sectional board, PVC foam board, etc.

Custom configurations available to meet specific customer requirements.

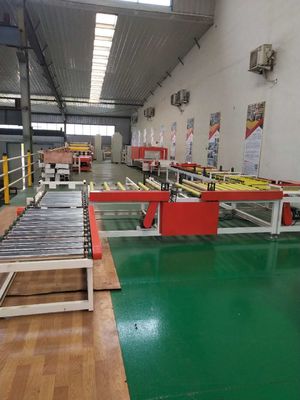

Production Process Flow

Automatic board feeding → Pre dusting → Coating → Drying and conveying → Aluminium foil unwinding → Pneumatic lamination for film and gypsum board → Cutting → Conveying → Automatic overturn → Coating → Drying and conveying → PVC film unwinding → Pneumatic lamination for film and gypsum board → Cutting → Drying and conveying → Lengthwise cutting → Horizontal cutting → Belt conveyor output → Autolift stacking conveying → Stretch packing → Conveying → Lift (finished products stacking)

Main Equipment Components

1. Automatic Loading Device

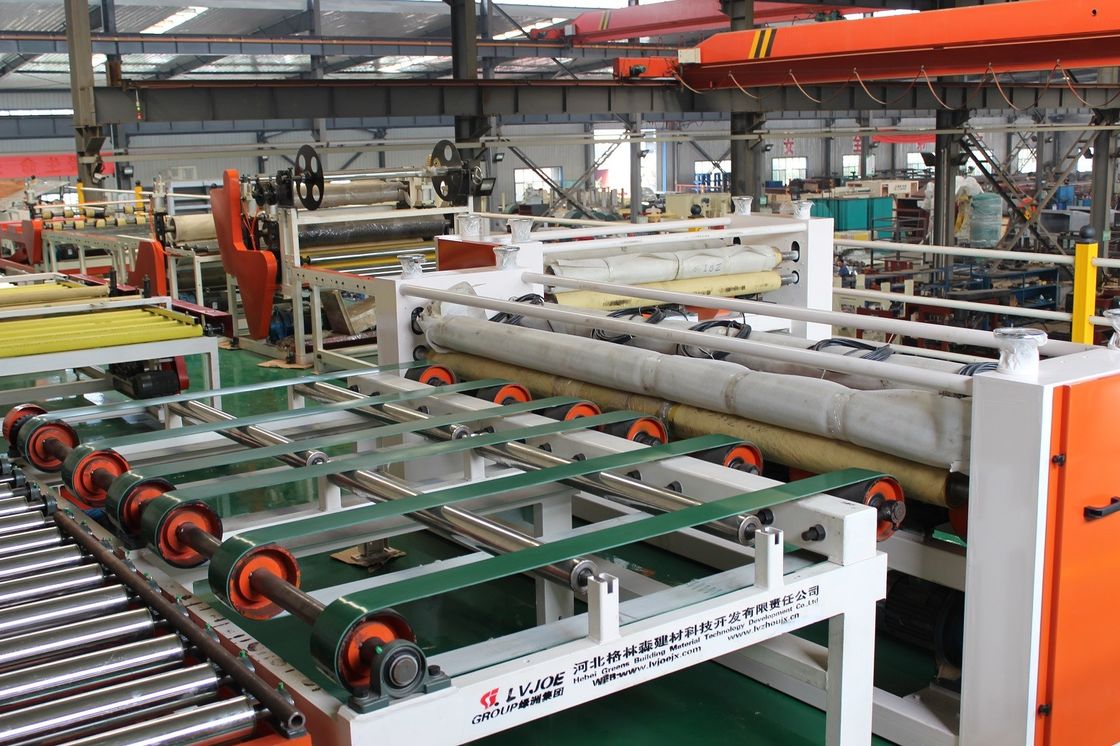

2. Lamination Machine

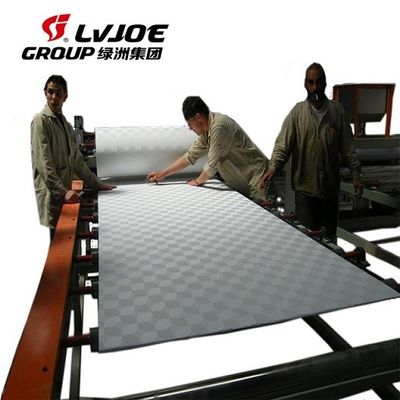

The lamination machine bonds decorative films to boards through a precise process involving dust collection, glue application, and pressure rolling through multiple rollers for perfect adhesion.

3. Automatic Cutting Machine

Precisely cuts laminated gypsum boards into required sizes for decoration applications through a two-stage cutting process with conveying rollers.

4. Electrostatic Pulse Bag Style Dust Collector

Features large dust exhaust fans and pipes for efficient dust removal during the cutting process.

5. Automatic Overturn System

6. Automatic Stacking Machine

7. Automatic Sealing Machine

8. Automatic Package Machine

Advanced packaging system that wraps finished boards with protective film, heated to create a moisture-proof seal.
