Fully Automatic Lamination Machine
Created with Pixso.

Advanced Technology Fully Automatic Gypsum Ceiling Board Making Machine Plant

Name

Advanced Technology Fully Automatic Gypsum Ceiling Board Making Machine Plant

Brand Name: Lvjoe
Model Number: LV-1300SFM
MOQ: 1 set
Price: US $20000-200000
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10 plants per year
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO, CE, SGS
Process:
Auto Feeder, Lamination, Cutting, Edge Sealing, Packing, Stacking
Workers Needed:
6-9
Usage:
Interior Decoration, Wall Partition, False Ceiling
Size:
595*595， 603*603， 1200*600mm
Capacity:
833 Sq.m/hour
Warranty:
1 Year
Packaging Details:
PE film wrapped
Supply Ability:
10 plants per year
Highlight:

heat shrink packing machine

,

full automatic shrink wrapping machine

Product Description

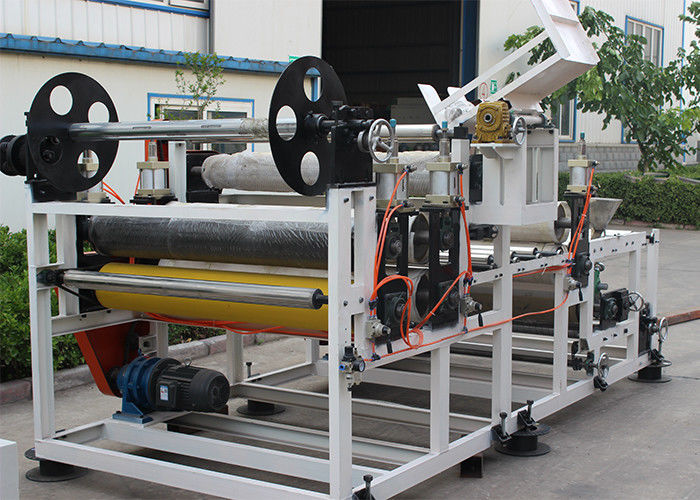

Advanced Technology Fully Automatic Gypsum Ceiling Board Making Machine Plant





1. Breif introduction




The full production line includes auto feeder ----laminating machine----cutting machine---edge sealing machine--- packing machine---shrink package machine ---stacker


The above machines can be part by part or installed in a complete line. We can design according to your requirement.



2. Size of finished products



Length*Width:595*595mm, 603*603mm, 1200*600mm



3. Features



Unwinding part for PVC film and aluminium foil



Max unwinding diameter: 600mm



Manual friction tension control system



Manual alignment device



Unwinding shaft is 76mm diameter pneumatic tension shaft



Transmission roller is rubber arch flatten roller and stainless steel roller.

lamination part has two times pneumatic pressing. Upper and down rubber roller press the film to laminate tightly. Upper press rubber roller moves upward and downward by means of cylinder, working pressure is 4kg.





Picture of finished products

Advanced Technology Fully Automatic Gypsum Ceiling Board Making Machine Plant 0
