Automatic Fireproof Lightweight Wall Panel Production Line For Mgo Board / Panel

Automatic Fireproof Lightweight Wall Panel Production Line For Mgo Board / Panel

    • Automatic Fireproof Lightweight Wall Panel Production Line For Mgo Board / Panel
    • Automatic Fireproof Lightweight Wall Panel Production Line For Mgo Board / Panel
    • Automatic Fireproof Lightweight Wall Panel Production Line For Mgo Board / Panel
    • Automatic Fireproof Lightweight Wall Panel Production Line For Mgo Board / Panel
  • Automatic Fireproof Lightweight Wall Panel Production Line For Mgo Board / Panel

    Product Details:

    Place of Origin: Hebei province
    Brand Name: Lvjoe
    Certification: ISO CE
    Model Number: LV-BM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: PE film packing
    Delivery Time: 90 days
    Supply Ability: 10 lines per year
    Contact Now
    Detailed Product Description
    Raw Material: Mgo, Mgcl, Sawdust, Fiber Glass, Gridding Cloth Production Capacity: 1200 Pcs/8 Hours
    Mgo Board Size: 1220*2440* 3-18mm Production Line Control: PLC Control

    Automatic Fireproof Lightweight Wall Panel Production Line For Mgo Board / Panel



    Mgo board machine adopts the automatic template device to save the labour cost. It also adopts automatic coating release agent system, by this way the release agent is evenly, less dosage and clean. Roller and forming roller precision is high that makes the board uniform thickness and smooth. Automatic cutting film system adopts fixed length cutting method, cutter does not hurt the template.

    Automatic mgo board making machine

    1. Productionline

    mgo board making machine can produce all kinds of magnesium oxide boards, they can be used for ceiling, wall skirting, decorating of indoor wall and lining board for furniture. It can replace three-ply board, five-ply board, flake board, MDF (Medium Density Fiberboard ) and Gypsum Board. It is really environment product and lower cost.
    2. Raw material and cost analysis
    The product is formed with crushed crop straw or sawdust and some inorganic chemical materials at one time after roller-extruding. The source of raw materials is widely and they are purchased easily for customers.
    3. Technology features
    There is not any requirement about high temperature and high pressure during production processing. The board will be formed at one time after roller-extruding under the conditions of normal temperature and normal pressure. This is a green environmental-protection project, because that there is no waste water, waste materials and waste gas during its production processing. The finished board doesn't need high temperature drying, air-drying and watering, and under the normal temperature, they will dry well indoor.
    4. Equipment Model and Product Specification
    According to different production, our equipment has 6 models for large-scale, middle-scale and small-scale. Our all equipment can produce board with same quality and specification but different production.
    The board with the thickness of 2-60mm, the biggest width of 1, 300mm and unlimited length. So you can adjust the thickness of board at will. The standard specification of the board is 1.22mX2.44m.
    5. After-sale
    After purchased the equipment, we will teach relevant technology for free, and will go to your factory for installation and testing until you can produce the qualified product by yourself. Our company will train 2-3 technical personnel for free until he can get the skill. We will take responsibility for provide technical consultation and following-up service for a long time, the equipment warranty period is one year.

    1. Batching platform

    This kind of feeding platform is made of medium carbon steel plate and heavy caliber medium carbon steel tube. On the head position of the forming line, there is equipped multiple feed opening, which can meet the requirements of different specification of Mgo board. Above the platform, there is installed three sets of blenders, which are used to stir different kind of raw materials sufficiently. There is also equipped automatic releasing agent device,which is used to guarantee the sufficient painting on the moldboard surface.

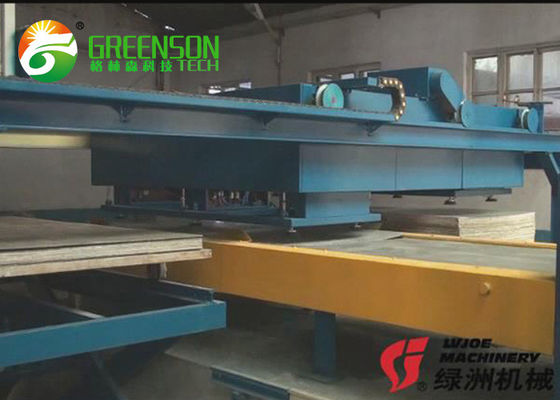

    There is equipped two sets of sucker on the head section of the production line,while there are moldboard elevators on both sides of the forming line. The double moldboard elevators and suckers guarantee the supplying of moldboard continuously and can meet volume-produce of Mgo board.

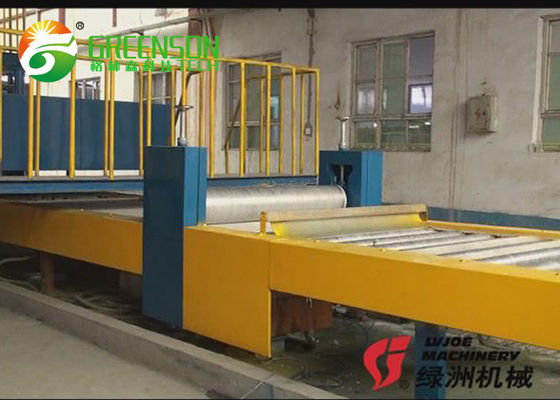

    2. Forming line

    This kind of line combined stainless steel tube and convey belt style. The stainless steel tube have been processed and polished subtly on the surface, all of the tubes are maintaining on a same level, which achieved greatly reduce wet waste board rate and guarantee the smooth surface,flattening,well-distribute and smallest error of the board. This line is adopted our unique designing of automatic wet board cutter controlling system, which achieving the purpose of cutting the wet board line rapidly and won’t hurt the moldboard according to the presetting length and microprocessor control and guarantee the precise length of the finished board.

    3. Automatic board receiving system:

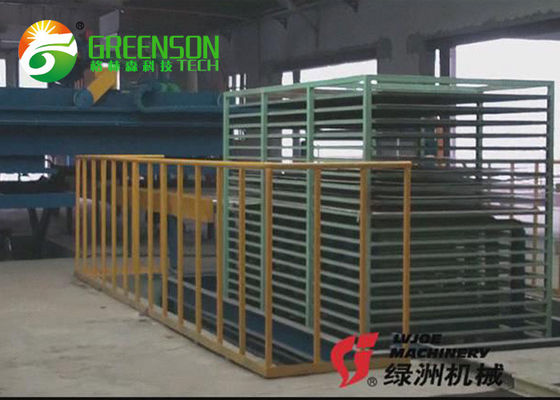

    The wet board will enter the automatic receiving system after has been cut with presetting length.This system adopted microcomputer and double elevators.The wet board with moldboard will enter the curing transporter layer by layer following the order of the microcomputer twenty boards with one curing transporter, and the double elevator achieve process production and volume-produce through alternate use.

    4. solidifying rom with trackway style:

    This set of production line is equipped with four trackway,each way can be placed multiple curing transporters and processed solidifying here. The multiple trackway system can meet the purpose of volume-produce.

    5. Automatic mould move system

    The automatic mould move system that adopt the double cupulas and double lifters, stack the moulds and the glass magnesium boards each other,there is a conveying track between the mould stacker and the forming line, it can carry out the quick conveying, so that the continuous producing. The glass magnesium boards will be conveying to the edge cutting saw and start the edge cutting for cutting for getting the dimension of the boards what we request.

    6. Automatic edge cutting and stacking system

    The edge cutting saw adopts the microcomputer controlling and configure the dust collecting system, and start the edge cutting follow the preconcerted width. The dust will be collected by the dust collector so that carry out the whole workshop without dust and sure the workshop environment protection achieve the standard of national rules.

    Because of the boards without the sanding, the surface of normal magnesium boards after edge cutting that is crude, so the boards will stacked on the first stacker, the stacker is configured the automatic aligning device so that the boards packing after stacking.

    7. Boards sanding and dust collecting system

    The boards will enter into the sanding machine directly and polish the board and achieve the standard of clients request after edge cutting if the client need to sand the surface of the glass magnesium board. The sanding machine configures the dust collector, the dust collector will collect the dust so that decrease the environment pollution and achieve the national standard. The board will smooth after sanding, and fill the kinds of need.

    Automatic Fireproof Lightweight Wall Panel Production Line For Mgo Board / Panel
