Automatic Semi Automatic Pvc Laminated Gypsum Ceiling Tiles Making Machine Production Line

Automatic Semi Automatic Pvc Laminated Gypsum Ceiling Tiles Making Machine Production Line

Brand Name:	LVJOE
Model Number:	Lvjoe-FM
MOQ:	1 line
Price:	US $20000-200000
Supply Ability:	10 line per year

Detail Information

Product Description

Detail Information

Place of Origin:

Shijiazhuang, Hebei province

Certification:

ISO CE

Raw Material:

Gypsum Board, PVC Film, Aluminum Foil, Glue

Condition:

New

Capacity:

2-6 Million Sqm

Original:

Hebei Province

Packaging Details:

PE film packing

Supply Ability:

10 line per year

Highlight:

pvc laminated gypsum ceiling tiles machine

automatic pvc gypsum board lamination machine

semi automatic gypsum board lamination machine

Product Description

Automatic Semi Automatic PVC Laminated Gypsum Ceiling Tiles Making Machine Production Line

Product Specifications

Raw Material	Gypsum board, PVC film, aluminum foil, glue
Condition	New
Capacity	2-6 million sqm
Origin	Hebei province

Product Description

Our gypsum board lamination technology applies PVC film to paper-faced plasterboard through specialized sticking and pressing processes. This creates unique visual effects ideal for personalized decoration requirements.

Key Production Features

Environmentally friendly and healthy materials
Wide variety of patterns, textures, and complete color options
Dust-free, moisture-proof, and mold-resistant properties
Easy cleaning and maintenance
Simple operation requiring no secondary decoration

PVC film laminated gypsum board offers waterproof, fireproof, and soundproof advantages. Its excellent visual effects and cleanliness make it ideal for ceiling and partition wall applications in commercial buildings, supermarkets, hospitals, movie theaters, and other public spaces.

Technical Overview

This production line incorporates the latest coating and laminating technologies to bond functional or decorative films with board materials through synchronous processing.

Technical Parameters

Effective Laminating Width	1300mm
Sheet Thickness	5-30mm
Laminating Speed	15m/min
Speed Adjustment	Frequency conversion synchronous speed regulating
Electrical Control	PLC
Annual Capacity	2-6 million Sq.m
Film Material	PVC film, aluminum foils, decorative material
Board Sheet Material	PVC baseboard, gypsum board, wood board, sectional board, PVC foam board

Note: Custom configurations available according to customer requirements.

Production Flowchart

Automatic board feeding Pre dusting Coating Drying and conveying Aluminium foil unwinding Pneumatic lamination for film and gypsum board Cutting Conveying Automatic overturn Coating Drying and conveying PVC film unwinding Pneumatic lamination for film and gypsum board Cutting Drying and conveying Lengthwise cutting Horizontal cutting Belt conveyor output Autolift stacking conveying Stretch packing Conveying Lift (finished products stacking)

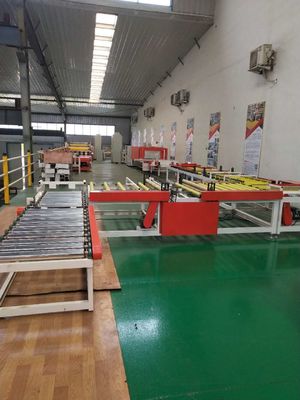

Main Equipment Components

Automatic Loading Device: Handles material feeding into the production line

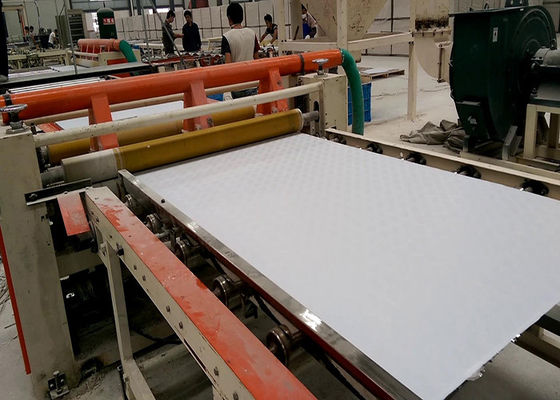

Lamination Machine: Bonds decorative film to boards through dust collection, glue coating, and precision roller pressing

Automatic Cutting Machine: Precisely cuts laminated boards to required dimensions through two-stage cutting process

Electrostatic Pulse Bag Style Dust Collector: Features large dust exhaust fan and pipes for efficient dust removal

Automatic Overturn System: Enables two-sided processing

Automatic Stacking Machine: Organizes finished products

Automatic Sealing & Packaging Machine: Uses shrink film technology for moisture-proof packaging
