Sound Absorbing Gypsum Ceiling Tile Production Line / Making Machine

Sound Absorbing Gypsum Ceiling Tile Production Line / Making Machine

Brand Name:	GREENS
Model Number:	FM
MOQ:	1 LINE
Price:	US $20000-200000
Supply Ability:	10 lines per year

Detail Information

Product Description

Detail Information

Place of Origin:

SHIJIAZHUANG

Certification:

ISO CE

Commodity Name:

Gypsum Ceiling Tile Production Line

Experience:

15years

Effective Laminating Width:

1300mm

Speed:

2-15m/min (adjustable)

Speed Adjustment Way:

Frequency Conversion Synchronous Speed Regulating

Electric Control:

PLC System

Packaging Details:

standard package for export or as per request for China gypsum ceiling tile production line with best reputation

Supply Ability:

10 lines per year

Highlight:

magnesium oxide board production line

building materials machinery

Product Description

Sound Absorbing Gypsum Ceiling Tile Production Line / Making Machine

Commodity Name	Gypsum ceiling tile production line
Experience	15 years
Effective Laminating Width	1300mm
Speed	2-15m/min (adjustable)
Speed Adjustment Way	Frequency conversion synchronous speed regulating
Electric Control	PLC system

Product Application

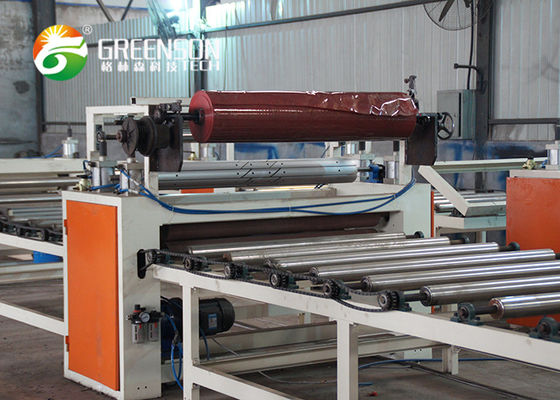

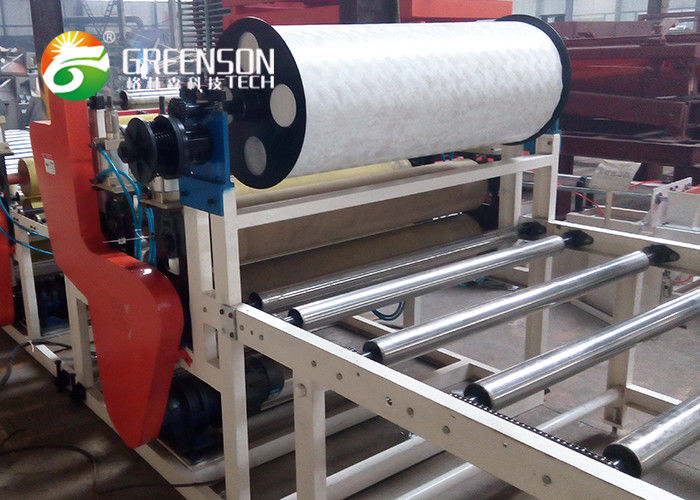

The lamination machine is designed for applying decorative films such as PVC film, aluminum foil, and wood grain to substrates including gypsum board, MDF, and PVC foam board.

The finished PVC gypsum ceiling tile consists of paper-faced gypsum board with a PVC surface layer and aluminum foil backing. This environmentally friendly product offers:

Light weight construction
High quality finish
Fireproof and waterproof properties
Corrosion resistance

Ideal for environments requiring high fireproof and waterproof standards, including hotels, hospitals, schools, residential buildings, and industrial facilities.

Production Flowchart

Automatic board feeding → aluminum foil lamination → PVC film lamination → lengthwise cutting → horizontal cutting → edge tapping → stretch packing → finished products stacking

Technical Specifications

Effective Laminating Width	Less than 1300mm
Sheet Thickness	5-30mm
Laminating Speed	15m/min
Speed Adjustment	Frequency conversion synchronous speed regulating
Installed Power	22kw
