PVC Gypsum Ceiling Tile Production Line With 8 Million Sqm Capacity

8 Million sqm Capacity PVC Gypsum Ceiling Tile Production Line with Lamination,Cutting, Packing Machine

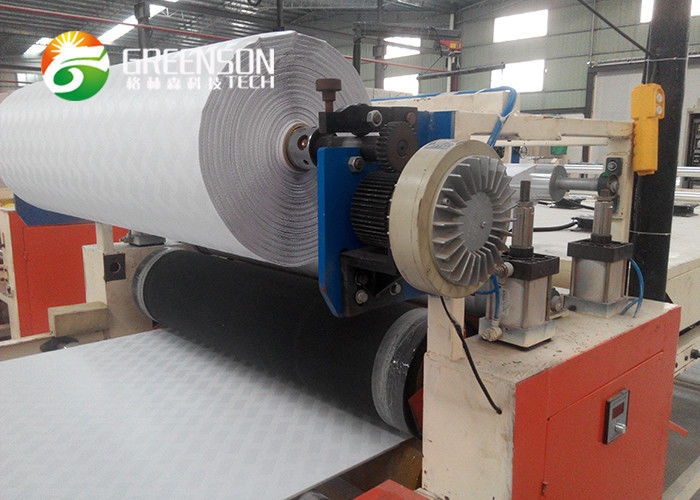

The lamination machine is used to paste decorative films like PVC film, aluminum foil etc with board (gypsum board or other board)together. Our latest Technology of full automatic ceiling production line and double side lamination line is very popular in domestic and international market. It is high automatic, saves manpower.

The finished PVC gypsum ceiling tile is made of paper-faced gypsum board with a layer of PVC on surface and aluminum foil on its back. It is a environmental friendly, light weight, high quality, fireproof, waterproof and corrosion-resistant decorative ceiling board. It can be widely used in high fireproof and waterproof requirement environment, such as hotel, hospital, school, house and factory etc.

Features of this Gypsum Ceiling Tile Production Line

1) Different automatic levels for your choice.
2) Adopting world famous brand Siemens PLC control system.
3) High capacity of 4-8 million sqm per year.

4) Raw materials: Gypsum board, PVC film, Aluminum foil, glue

5) Effective laminating width: Max 1300mm
6) Sheet thickness: 5--30mm
7) Laminating speed: Max 15m/min
8) Speed adjust way: frequency conversion synchronous speed regulating
9) Certification: ISO9001, SGS, CE, ROHS

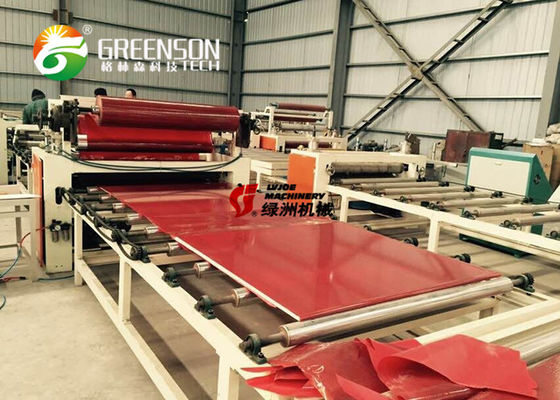

The Full Laminating Line includes the following machines:

1. Automatic Board Loading machine

2. PVC film coating and laminating machine

3. Automatic board over turner

4. Aluminum foil coating laminating machine

5. Cutting machine

6. Edge wrapping machine

7. Packing machine

8. Finished board stacking

Flowchart (some of the parts are optional)
Automatic board feeding--aluminium foil lamination- board over turner-PVC lamination-cutting-edge sealing- packing- stacking
