PVC / Aluminum Foil Laminated Gypsum Ceiling Tile Production Line With PLC Control System

The PVC and Aluminum Foil Laminated Gypsum Ceiling Tile Production Line is designed for applying decorative films (PVC film, aluminum foil, etc.) to various board materials including gypsum board. Our advanced automatic ceiling production line and double side lamination technology are widely recognized in both domestic and international markets for their high automation and labor efficiency.

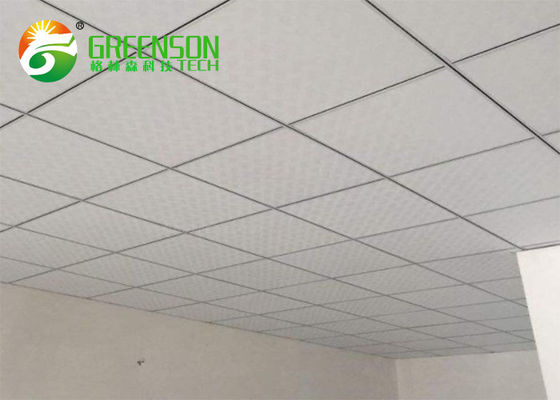

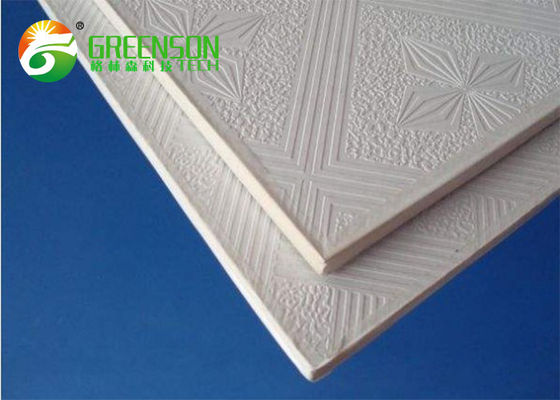

The finished PVC gypsum ceiling tile consists of paper-faced gypsum board with a PVC surface layer and aluminum foil backing. This environmentally friendly product offers lightweight construction, superior quality, and excellent fireproof, waterproof, and corrosion-resistant properties, making it ideal for demanding environments such as hotels, hospitals, schools, residential buildings, and factories.

• Multiple automation levels available to suit different requirements
• Incorporates Siemens PLC control system for reliable operation
• High production capacity of 4-8 million square meters annually
• Compatible materials: Gypsum board, PVC film, Aluminum foil, adhesive
• Maximum laminating width: 1300mm
• Sheet thickness range: 5-30mm
• Maximum laminating speed: 15m/min
• Speed adjustment via frequency conversion synchronous regulation
• Certifications: ISO9001, SGS, CE, ROHS

• Automatic Board Loading Machine

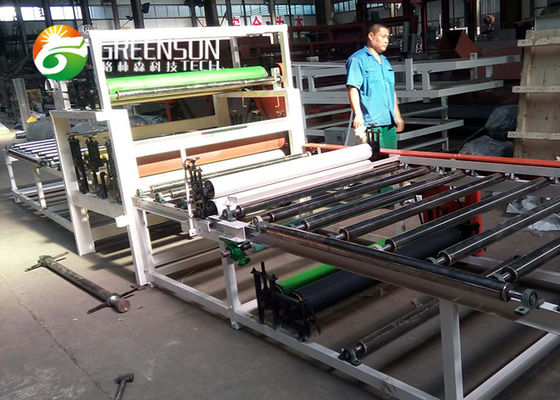

• PVC Film Coating and Laminating Machine
• Automatic Board Overturner
• Aluminum Foil Coating Laminating Machine
• Cutting Machine
• Edge Wrapping Machine
• Packing Machine
• Finished Board Stacking System

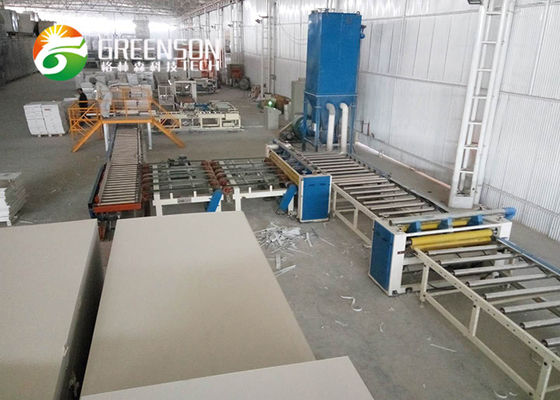

Automatic board feeding → Lamination for film and gypsum board → Cutting to 600×600mm → Edge sealing → Packing → Finished products stacking (some components are optional)
