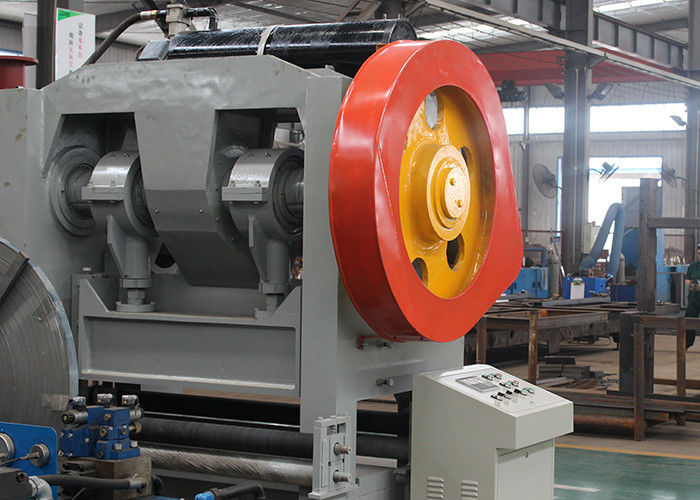

Gypsum Board HPL Sheet Perforation Machine For Round / Square Hole

Gypsum Board HPL Sheet Perforation Machine For Round / Square Hole

Brand Name:	LVJOE
Model Number:	LV-CK01
MOQ:	1 set
Price:	US $20000-80000
Supply Ability:	50 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO CE SGS

Pressure:

80T, 160T, 200T

Usage:

Gypsum Board, MDF, HPL, Fiber Cement Board Perforation

Holes:

Round, Square

Feature:

Penumatic Clutch

Speed:

50 Times/minute

Stroke:

30mm

Packaging Details:

PE film wrapped

Supply Ability:

50 sets per year

Highlight:

perforated sheet making machine

sheet metal perforating machine

Product Description

Gypsum Board HPL Sheet Perforation Machine for Round Hole, Square Hole

Technical data:

1.Punching pressure: 200 ton

2. Stroke: 30 mm

3. Max mold height closed: 260mm.

4.Number of strokes: 50 times/minute

5. Slide surface: 210*1100mm

6. Working table: 300*1670mm

7. Spacing of both pole: 1350mm (load the max board width 1220mm)

8.Power of main motor: 22kw Power of servo motor:2.6kw(brand: Zhejiang yifeng)

9.Feeding accuracy: ±1mm

10. Maximum feeding rate: 100mm

11. Maximum feeding thickness: 20mm

12.Gross weight of machine: 11000kg

13.Overall dimension: 2300*1500*2300(H*L*W)

14.Structure and configuration:

Body of the main machine is welded with Q235 steel plate. H type gantry structure

15. configuration of feeding system

Servo motor controlled feeding device

a. With front and rear roller conveyor (3000mm each)

b. Adopt unilateral positioning , easy operation, high frequency

16. Configuration for electric control system

Central cabinet control, LCD touch screen digital input, control the feeding, punching, operation

5.7-inch color LCD touch screen

Usage

This perforation machine is used to perforate holes in the gypsum ceiling board, MgO board, MDF, HDF, Fiber cement board, metal sheet.
You can choose the shape of the hole as your requirement, about the operation, our worker can teach you how to use it.

Finished Products

Gypsum Board HPL Sheet Perforation Machine For Round / Square Hole 0
