Place of Origin: | Hebei, China (Mainland) |
Brand Name: | LVJOE |
Certification: | ISO9001/CE |
Model Number: | LV-XT1303 |
Minimum Order Quantity: | 1 Line |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case |
Delivery Time: | 2 months |
Payment Terms: | L/C, T/T |
Supply Ability: | 50 Set/Sets per Year |
Application: | Ceiling, Wall, Etc | Thickness Of Gypsum Cornice: | 8-10mm |
---|---|---|---|
Length Of Gypsum Cornice: | 2450mm | Width Of Gypsum Cornice: | 30-400mm |
Warranty: | 1 Year | Port: | Tianjin |

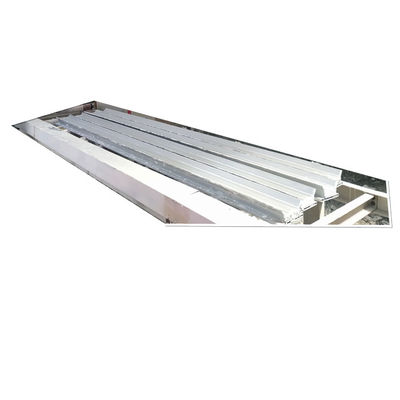

Latest Technology Decorated Different Molds for Gypsum Cornice Making Machine
1.Product Description
a.Choosing mould and cleaning
Before that, it is very important to select high quality die. The pattern of the die should be clear, stereoscopic
and smooth. If the mould is carefully cleaned with the dragging plaster, it is necessary to ensure the internal
cleanliness of the plaster line mould and carefully clean the inside of the fine seam of the pattern.
b.Fixing mould
Firstly, the die should be clamped by a clamp with strong clamping force, and attention should be paid to maintaining
the value level with glass or marble countertops when clamping. Otherwise, when the gypsum lines are demoulded,
the gap often said to be "left on the wrong side" will appear in the finished product.
c.Mixing
Choosing the right spoon, the size of spoon should be proportional to the width and thickness of gypsum line.
The wider and thicker the line, the more gypsum powder needed, the larger the spoon selected. Add water to the
spoon and sprinkle with gypsum powder.
d.Fill in gypsum slurry
The adjusted gypsum slurry is evenly put into the gypsum line mould until the gypsum slurry completely covers the
front of the whole mould, the thickness of which is more than 5 mm, then glass fibre or mesh cloth is added, a strong
thin rope is added at one end, then a layer of gypsum slurry is covered, and then scraped flat with a special mould scraper.
e.Gypsum cornice demoulding
After the basic solidification of the gypsum lines, remove the clamp of the mould, slightly throw off the mould, with a light
force, and pay attention to hand cleaning and not leaving dirt on the white lines.
f.Air cure
Drag the molded gypsum line vertically hanging (rope added in the fourth part) to air, if it is arc gypsum line or special-shaped
gypsum line, it is laid flat and air-dried.
2.Application:

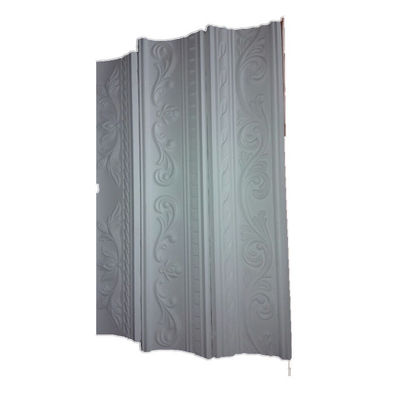

Gypsum line is the main interior decoration material for house decoration. It can be practical and beautiful with various
patterns. It has the functions of fire prevention, moisture proof, heat preservation, sound insulation and heat insulation,
and can play a luxurious decorative effect.
Capacity | 2000pcs/8h-10000pcs/8h |
Automatic level | high automatic |
Raw material | natural gypsum powder, mesh, fiber-glass, water, addtives |
Installation and commission | 2 workers , 15-20 days. |
4.Gypsum wire materials:
natural gypsum powder, water, glass fiber, glass fiber mesh cloth. Generally speaking, a gypsum thread weighs
about 2 kilograms and a bag of powder can produce 20 - 22 strips. Use as many tons of powder as you need in a day, 1:1.
5.Our Service
1. Our company has professional installation & debug teams. We will install and test the production line at
the customers' place until the equipment produces the qualified products.
2. We supply the accessories all the year round. The guarantee time of the equipment is one year.
3.If the buyer can not run the machine well then we will send the production engineers to help the buyer to
run the machine, and we can cooperate for long terms.
6.Our Company
HEBEI LVJOE MACHINERY MANUFACTURING CO.,LTD. established in 1998, is a large manufacturer
dedicated in research, manufacturing, and trading of building material machinery. We are a company credited
and honored by the HEBEI provincial government, with high-tech enterprise certificate issued by the state,
national patent licenses, CE quality system certification issued by the EU, and ISO9001 quality system certification.
