Place of Origin: | shijiazhuang |
Brand Name: | GREENS |
Certification: | ISO |
Model Number: | FM |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiation |
Packaging Details: | standard package for lamination machine export or as per requirement |
Delivery Time: | Shipped in 60 days after payment |
Supply Ability: | 20 Sets per year |
Commodity Name: | PVC And PET Film Faced Gypsum Ceiling Board Making Machines | Experience: | 15years |
---|---|---|---|
Effective Laminating Width: | 1300mm | Speed: | 2-15m/min (adjustable) |
Speed Adjustment Way: | Frequency Conversion Synchronous Speed Regulating | Electrical Equipment: | Adopt Premium Brands Or As Per Request |

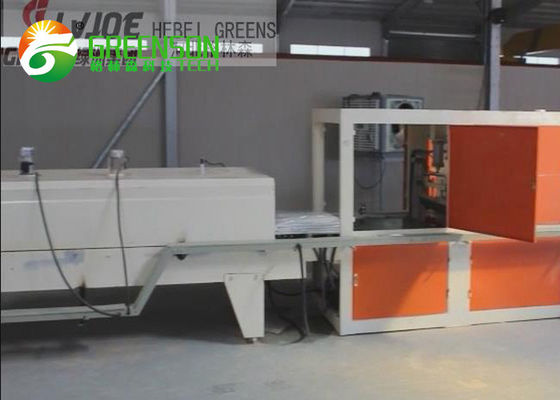

Building Material Machinery Gypsum Ceiling Board Lamination Machine
Brief Introduction on PVC Gypsum Ceiling Tile
PVC gypsum ceiling tile is made of paper-faced gypsum board with a layer of PVC on surface and aluminum foil on its back. It is a environmental friendly, light weight, fireproof, waterproof and corrosion-resistant decorative ceiling board. It is easy to clean, and the patterns can be customized. It can be widely used in high fireproof and waterproof requirement environment, such as hotels, restaurants, shopping malls, theaters, stations, auditoriums, offices, living rooms, office buildings, electronic computer rooms, precision instrument rooms, and interior decoration of factories or houses.

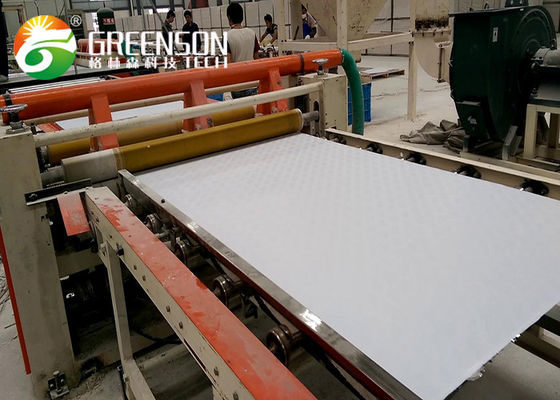

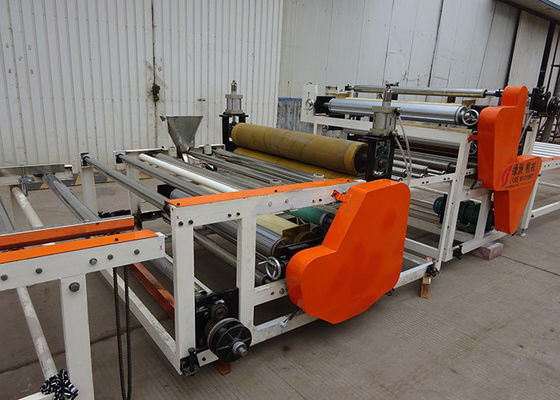

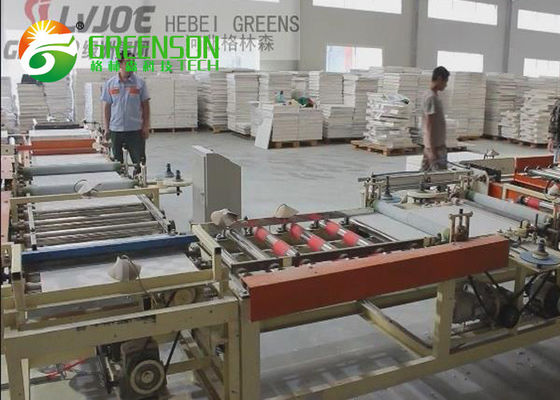

Gypsum board laminating machine line is to laminate film and board. Firstly, eliminate dust of board, which is on the feeding roller, then coat glue on the board. After it is feeding by means of guide roll, adhensive being fixed position and film go into composite structure. This process includes twice press roll, pinch roll and forming roll.
This machine is used for film-coating PVC protective board, forming board, low-foaming board, wooden board etc.
1.Capacity:
7000-12000m2 per day
(basis of calculation: L:595mm, T:7mm, W:595mm, weight: 5.5 kg/M2, for 7mm board)
2.Automation
simple and high degree automatic
3.Main materials
Gypsum board , PVC film, aluminum foil, glue for PVC, glue for aluminum
4.Dimension of product
Length*Width:595*595mm,600*600mm,603*603mm,1200*600mm
Thickness:7.0mm, 7.5mm, 8.0mm,8.5mm 9.0mm
gypsum board lamination machines process chart:
For laminating, there are two types, one is laminate one side and then another side.
Second way is to laminate two side at one time.
After developing 18 years in this field, we focus on laminate two-side at once. Which save cost and area and increase working efficiency.
