Plaster Board Gypsum Board Cement Board Holes Punching Line Holes Making Machine

Plaster Board Gypsum Board Cement Board Holes Punching Line Holes Making Machine

Brand Name:	LVJOE
Model Number:	LV-CK01
MOQ:	1 set
Price:	US $20000-80000
Payment Terms:	L/C,T/T
Supply Ability:	50 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO CE

Product Name:

Plaster Board Gypsum Board Cement Board Holes Punching Line Holes Making Machine

Keyword:

Small Business Opportunity Suspended Ceiling Tiles Perforation Machine Perforated Gypsum Drywall Board Ceiling Machine

Pressure:

80T, 160T, 200T

Usage:

Gypsum Board, MDF, HPL, Fiber Cement Board Perforation

Patterns:

Round, Square, Oval, Hexagonal, Irregular

Width Of Perforation:

1220mm

Speed:

50 Times/minute

Overall Size:

2300*1500*2300(H*L*W)

Packaging Details:

PE film wrapped

Supply Ability:

50 sets per year

Highlight:

gypsum board perforation machine

cement board hole punching line

plaster board holes making machine

Product Description

Plaster Board Gypsum Board Cement Board Holes Punching Line Holes Making Machine

Product Specifications

Attribute	Value
Product Name	Plaster Board Gypsum Board Cement Board Holes Punching Line Holes Making Machine
Pressure Options	80T, 160T, 200T
Material Compatibility	Gypsum Board, MDF, HPL, Fiber cement board perforation
Available Patterns	Round, Square, Oval, Hexagonal, Irregular
Width of Perforation	1220mm
Operation Speed	50 times/minute
Overall Dimensions	230015002300 (HLW)

Technical Specifications

Punching pressure: 200 ton
Stroke: 30 mm
Max mold height closed: 260mm
Number of strokes: 50 times/minute
Slide surface: 210*1100mm
Working table: 300*1670mm
Spacing of both pole: 1350mm (loads max board width 1220mm)
Power of main motor: 22kw
Power of servo motor: 2.6kw (brand: Zhejiang yifeng)
Feeding accuracy: ±1mm
Maximum feeding rate: 100mm
Maximum feeding thickness: 20mm
Gross weight: 11000kg
Overall dimension: 2300*1500*2300 (H*L*W)

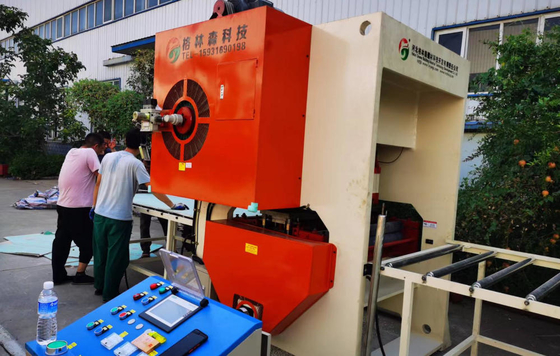

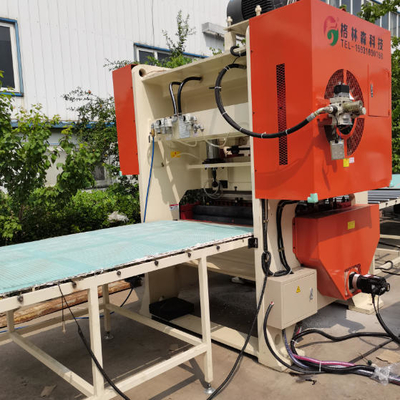

Structure and Configuration: Body of the main machine is welded with Q235 steel plate. H type gantry structure.

Feeding System Configuration

Servo motor controlled feeding device

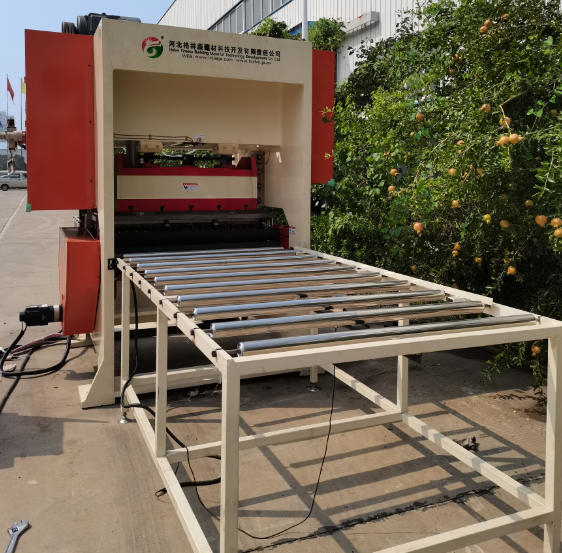

Front and rear roller conveyor (3000mm each)
Unilateral positioning for easy operation and high frequency

Electric Control System

Central cabinet control
LCD touch screen digital input
Controls feeding, punching, and operation
5.7-inch color LCD touch screen

Applications

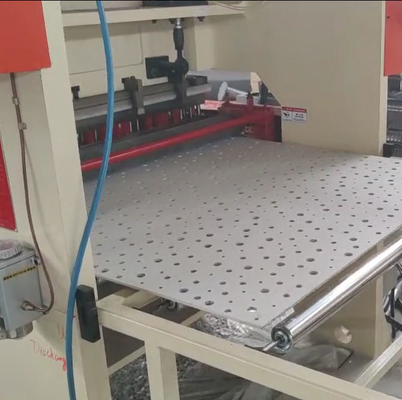

This perforation machine is used to create holes in gypsum ceiling board, MgO board, MDF, HDF, Fiber cement board, and metal sheets.

Available Perforation Patterns

Custom perforating mold designs available. Our company maintains a punching pattern database to provide technical support for customers, including:

Round hole
Square hole
Oval hole
Round/oval cross
Hexagonal hole
Irregular hole
