Place of Origin: | Hebei, China (Mainland) |
Brand Name: | LVJOE |
Certification: | CE ISO9001 |
Model Number: | GSLV-01 |
Minimum Order Quantity: | 1 Line |
---|---|
Price: | Negotiation |
Packaging Details: | Standard package for export or as per request |
Delivery Time: | Within 3 months |
Payment Terms: | L/C, T/T |
Supply Ability: | 20 Set/Sets per Year |
Power(W): | Depends On Actual Requirement | Voltage: | 380V |
---|---|---|---|
Annual Capacity: | 2-8 Million Sqm | Warranty: | 1year |
Application: | Calcium Silicate Board Making | Main Processes: | Pulping, Forming, Steaming, Drying |

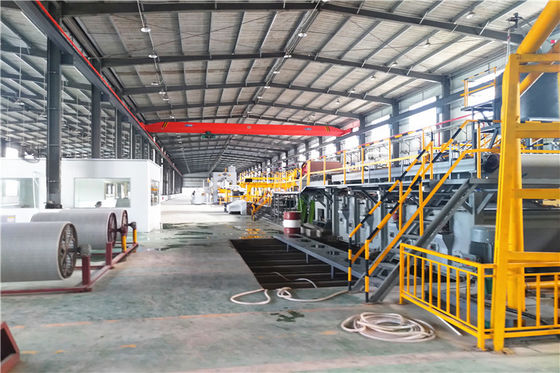

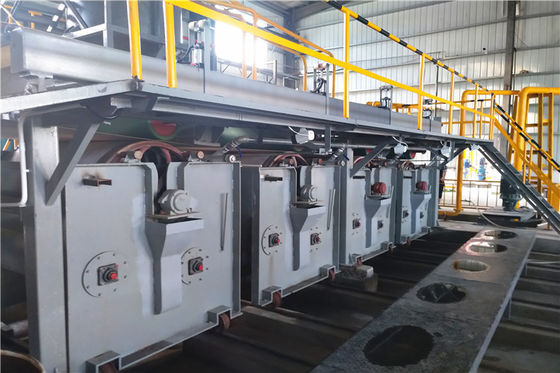

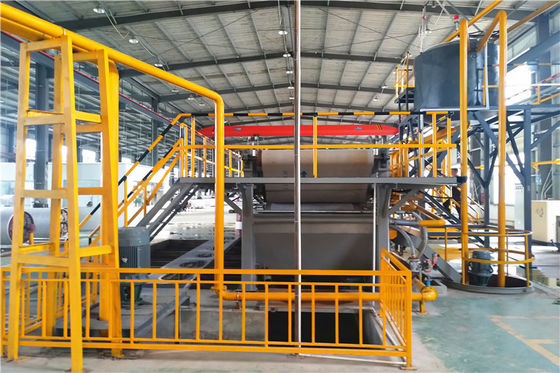

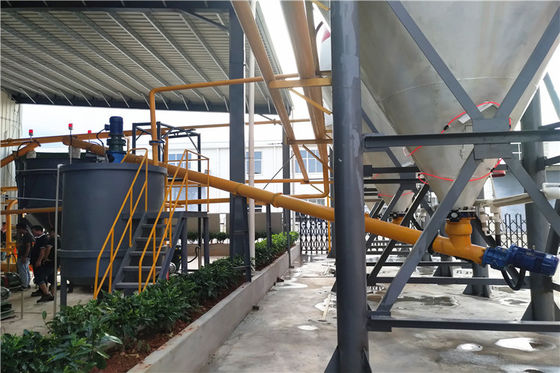

Fast Delivery Exterior And Interior Calcium Silicate Board Production Line
Product Description
Calcium Silicate Board is composed of siliceous material(main component is SiO2)and Calcareous materials
(main component is CaO),and adding appropriate reinforced material,processed by pulping,molding,autoclaved
curing and drying,sanding etcs procedure to be one kind of new mtaerials with features of light weight,high
strength,excellent refractory and heat insulation performance.
Technical Information for Calcium Silicate board
Calcium silicate board calculates according to 5mm thickness,annual capacity is
5 million sqm(300 days, 3 shifts/day)
Products variety and specification:Length*Width*Thickness=1220×(4~30)mm
Products technical performance:
1 Density: 0.7~1.2g/cm3
2 Bending strength: ≥9Mpa
3 Screw pullout force:≥75N/mm
4 Heat conductivity coefficient: 0.29W/mk
5 Water content: ≤10%
6 Hot-shrinkage rate: ≤1%(600℃×3h)
7 Noninflammability: A class
According to customer’s requirement,ultralight(0.50~0.69g/cm3)and high
temperature resistance (1100℃)and special specification are available.
Item |
Unit |
Calcium Silicate Board |
Density | g/cm3 | <1.2 |
Anti-bend strength | MPa | >9 |
Heat conduction modulus | w/m.k | <0.29 |
Anti-impact strength | kJ/mm2 | >2.0 |
Pull force of screw | N/mm | >75 |
Dry shrinkage rate | % | <0.2 |
Non-burn performance | In accordance with standard GB8624 First ClassNon-burn Material |
The usage of Calcium Silicate board
widely applied in the suspended ceiling system of business building, entertainment facility, supermarket, hotel,
restaurant, hospital, theater, warehouse, apartment building and so on.
Our Services
1) The machine guarantee1 years except the easy worn parts such as bearings,
electric buttons.
2) Our company could dispatch professional engineer to buyer’s factory when the machine arrive at the
destination.
3)Our engineers will train the buyers' worker to operate the machine and after
you master the machine then pay us the installation and commissioning payment.
4) In order to ensure the machine working well, each year we will send engineer
to check and develop the technology.
Company Information
Our company is an important supplier of fiber cement board produciton line. We have professional team and rich
experience in this field. We also have our own factory so we can give you our best price. We would like to establish
business relations with you on the basis of mutual benefits and equality. Please contact us if you are interested in
the equipment provided by our company.
Contact Person: James Yang
Tel: +8615832254694
