High Accuracy Automatic Cutting Equipment 2-15m/Min Speed PLC System

High Accuracy Automatic Cutting Equipment 2-15m/Min Speed PLC System

Brand Name:	LVJOE
Model Number:	1300FM
MOQ:	1 set
Price:	US $20000-200000
Payment Terms:	L/C, T/T
Supply Ability:	10 lines per Year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei，China(Mainland)

Certification:

ISO CE

Finished Board Type:

603*603/595*595mm

Electric Control:

PLC System

Production Capacity:

15m/min

Speed:

2-15m/min (adjustable)

After-sales Service:

Engineers Available To Service

Warranty:

1 Year

Packaging Details:

Standard packing

Supply Ability:

10 lines per Year

Highlight:

gypsum board making machine

gypsum board feeding machine

Product Description

High Accuracy Automatic Cutting Equipment 2-15m/Min Speed PLC System

Product Specifications

Attribute	Value
Finished board type	603×603/595×595mm
Electric control	PLC system
Production Capacity	15m/min
Speed	2-15m/min (adjustable)
After-sales Service	Engineers available to service
Warranty	1 year

Product Overview

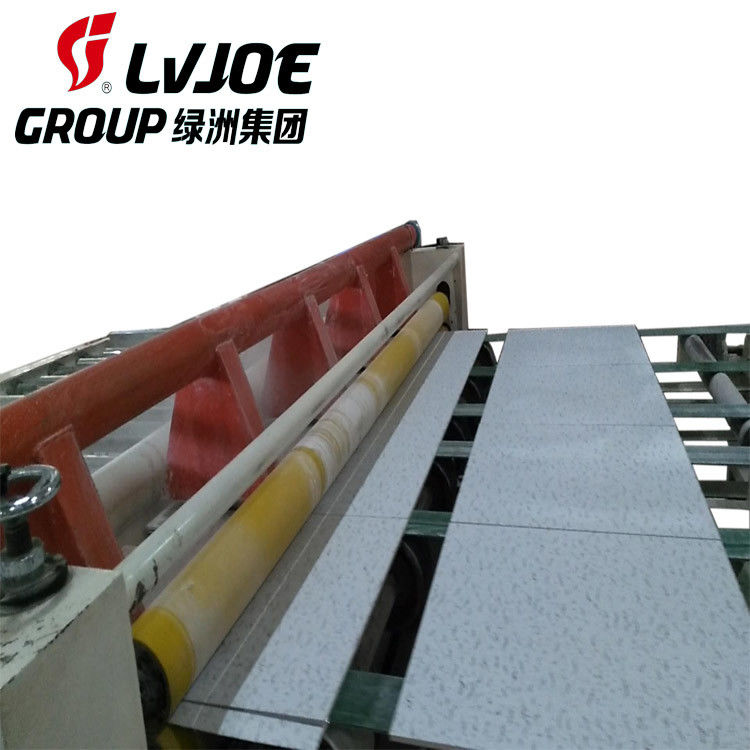

Lvjoe Brand Automatic Cutting Equipment is designed for laminating fiber glass, paper, PVC film and aluminum foil on gypsum board. The finished products are used as ceiling tiles and partition wall panels.

Production Process

Automatic board feeding
Pre dusting
Coating
Drying and conveying
Aluminum foil unwinding
Pneumatic lamination for film and gypsum board
Cutting (manual/automatic)
Lengthwise and horizontal cutting
Belt conveyor output
Autolift stacking
Stretch packing

Automatic Gypsum Board Feeding Machine

Cylinder pushes gypsum board from stack lift platform to conveyor roll
Max. Load-bearing: 3000kg
Stroke: 1500mm
Height range: 620mm-2000mm
Platform size: 1200×2400mm

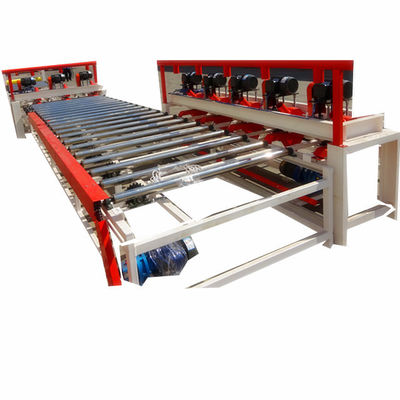

Automatic Cutting Machine Features

Two cutting systems: vertical/longitudinal and horizontal
Equipped with dust collector system
Cuts 1.2×2.4m boards to 603×603mm/595×595mm
Cutting speed: 15m/min
Cutting knives: 3 vertical blades, 5 horizontal blades
Overall power: 17.15KW

Technical Parameters

Sheet thickness: 5-30mm
Speed adjustment: Frequency conversion synchronous speed regulating
Annual capacity: 2-4 million Sq.m
Compatible materials: PVC film, aluminum foils, decorative materials
Board materials: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board
Stacking mode: 10 layers (4 packages/layer)
Overall dimension: 56000×9200mm
