High Speed Gypsum Ceiling Tile Production Line With Automatic Board Loading Machine

High Speed Gypsum Ceiling Tile Production Line With Automatic Board Loading Machine

Brand Name: LVJOE
Model Number: Lvjoe-FM
MOQ: 1 line
Price: US $20000-200000
Supply Ability: 10 line per year
Detail Information
Place of Origin:
Shijiazhuang, Hebei province
Certification:
ISO CE
Raw Material:
Gypsum Board, PVC Film, Aluminum Foil, Glue
Condition:
New
Capacity:
2-6 Million Sqm
Original:
Hebei Province
Effective Laminating Width:
1300mm
Laminating Speed:
15m/min
Packaging Details:
PE film packing
Supply Ability:
10 line per year
Highlight:

building materials machinery

,

gypsum ceiling production line

Product Description
High Speed Gypsum Ceiling Tile Production Line With Automatic Board Loading Machine
Product Specifications
Raw Material Gypsum board, PVC film, aluminum foil, glue
Condition New
Capacity 2-6 million sqm
Origin Hebei province
Effective Laminating Width 1300mm
Laminating Speed 15m/min
Product Description

Our gypsum board lamination system uses specialized technology to bond decorative films to paper-faced plasterboard through precise sticking and pressing processes. The result is a visually distinctive product that meets diverse decorative requirements.

Key Production Features
  • Environmentally friendly and health-conscious manufacturing
  • Wide selection of patterns, textures, and colors
  • Dust-free, moisture-resistant, and mold-proof properties
  • Easy cleaning and maintenance
  • Simple operation requiring no secondary decoration

PVC film laminated gypsum board offers superior waterproofing, fire resistance, and soundproofing qualities. Its excellent visual appeal and cleanliness make it ideal for ceiling and partition applications in commercial buildings, supermarkets, hospitals, theaters, and other public spaces.

Technical Overview

This advanced production line incorporates the latest coating and laminating technologies to seamlessly bond functional or decorative films to various board materials. The entire system operates with synchronous precision.

Technical Parameters
Effective Laminating Width 1300mm
Sheet Thickness 5-30mm
Laminating Speed 15m/min
Speed Adjustment Frequency conversion synchronous speed regulating
Electrical Control PLC
Annual Capacity 2-6 million Sq.m
Film Material PVC film, aluminum foils, decorative material, etc.
Board Sheet Material PVC baseboard, gypsum board, wood board, sectional board, PVC foam board, etc.

Custom configurations available to meet specific customer requirements.

Production Process Flow
Automatic board feeding → Pre dusting → Coating → Drying and conveying → Aluminium foil unwinding → Pneumatic lamination for film and gypsum board → Cutting → Conveying → Automatic overturn → Coating → Drying and conveying → PVC film unwinding → Pneumatic lamination for film and gypsum board → Cutting → Drying and conveying → Lengthwise cutting → Horizontal cutting → Belt conveyor output → Auto-lift stacking conveying → Stretch packing → Conveying → Lift (finished products stacking)
Core Equipment Components

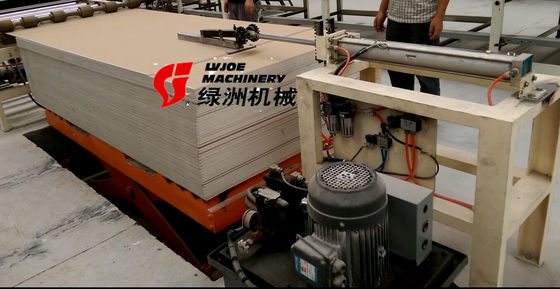

  • Automatic Loading Device: Ensures continuous material feeding
  • Lamination Machine: Precisely bonds decorative films to boards through dust collection, glue application, and press roller systems
  • Automatic Cutting Machine: Accurately sizes laminated boards for decoration applications
  • Electrostatic Pulse Bag Style Dust Collector: Features large dust exhaust fan and pipe for efficient particulate removal
  • Automatic Overturn System: Enables two-sided processing
  • Automatic Stacking Machine: Organizes finished products
  • Automatic Sealing & Packaging Machines: Provides advanced film wrapping with heating room for moisture-proof protection
High Speed Gypsum Ceiling Tile Production Line With Automatic Board Loading Machine 0
