Place of Origin: | Hebei , China (Mainland) |
Brand Name: | LVJOE |
Certification: | CE ISO 9001 |
Model Number: | 1300FM03 |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiation |
Packaging Details: | Standard package for export or as per request for PVC and PET film faced gypsum ceiling board making machines. |
Delivery Time: | 60 Days |
Payment Terms: | L/C, T/T |
Supply Ability: | 50 Sets Per Year |
Features: | Easy To Operate | Driven Type: | PLC System |
---|---|---|---|
Voltage: | 380V | Dimension(L*W*H): | 12600*1950*1600 |
Warranty: | 1 Year | Weight: | 3-30t |

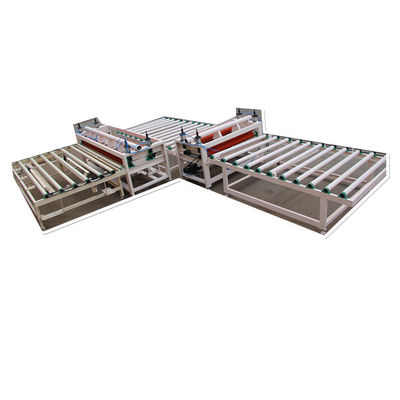

Sheetrock Lamination Machine With Automatic Loading Unloading Device
Production Description
1.Brief introduction
Automatic Board Loading Equipment
There are two types of this loading equipment for your choice.
Name: Suction type board loading machine
Brand: LVJOE
Original: China
This equipment adopts single side suction way to feed kinds of palsterboard into the next production step.
It can achieve the continous production without hurting the board. Eady to operate with reliable performance.
Technical specification:
Board size: 1220*2440mm
Loading mode: continuous unilateral vacuum loading
loading speed: 6pcs/min
Install power: 4KW, 380V
2.Related information
Dimension of product:
595*595mm,600*600mm,603*603mm,1200*600mm
Thickness:7.0mm, 7.5mm, 8.0mm,8.5mm 9.0mm
Main materials:
Gypsum board , PVC film,aluminum foil,glue for PVC,glue for aluminum
Capacity :
10000m2 per shift
(basis of calculation:L:595mm,T:7mm,W:595mm,weight: 5.5 kg/M2,for 7mm board)
3.Usage:
Gypsum ceiling board is laminated PVC film in front side and aluminum film in back side of paper faced gypsum
board. The features are waterproof, moisture proof, flame resistant, thermal insulation,radiation proof, anti-sagging,
non-deformed, etc.
4.Technical parameters:
Type | LV--SFM01 | LV--SFM02 | LV--SFM03 | ||
Effective laminate width | ≤1300mm | ≤1300mm | ≤1300mm | ||
Thickness of sheet | 5---30mm | 5---30mm | 5---30mm | ||
Laminate speed | 3---15m/min | 3---15m/min | 3---15m/min | ||
Speed adjustment mode | Frequency conversion synchronous speed regulating | ||||
Board feeding and releasing mode | automatic | ||||
Films cutting mode | automatic | ||||
Total power | 8KW | 10KW | 20KW |
5.Product characteristics:
1.Gypsum Board PVC Laminating Machine is to laminate PVC film and aluminum film on two sides of
paper gypsum board, with the features of highly waterproof, moisture proof, flame-resist, heat-resist, warm-keeping,
radiation proof, anti-sagging, non-deformed and so on.
2.Gypsum Board PVC Laminating Machine is not only well- shaped, high intensity, durable in use, non-poisonous,
but also good for adjusting inside room temperature, and keeping health for human being. No doubt it is an ideal
green construction material, which is commonly used in public area, such as shopping mall, station, and casino.
It is not a kind of art, but excel as art. elegant in design, unique in pattern.
6.Our Services
1. Best Price; we have our own factory, who has been specialized in full automatic pvc laminated gypsum
ceiling tiles machine for more than 15 years, and you are welcome to our factory any time.
2. Superior Quality; quality is the life of all our business.
3. Best Service; we are the special International Trading Company of our factory, and especially focus on
exporting business.
4. Best after-sale service; our engineers will design scale of whole production line and help you with
installation and commissioning, and train your workers or employees until they know how to operate all equipment.
7.Company Information
HEBEI LVJOE MACHINERY MANUFACTURING CO.,LTD. established in 1998, is a large manufacturer
of integrated supply dedicated in researching,manufacturing,trading of plasterboard machinery. We are
HEBEI province municipal civilized and creditable unit,with high-tech enterprise certificate issued by the
state,national patent licenses,CE qualitysystem certification issued by the EU,and ISO9001 quality
system certification.
