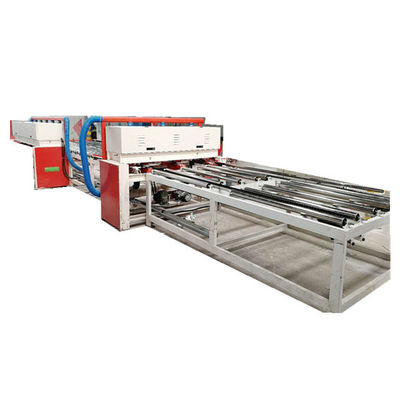

Labor Saving Push-type And Suction-type Automatic Board Loading Equipment

Labor Saving Push-type And Suction-type Automatic Board Loading Equipment

    • Labor Saving Push-type And Suction-type Automatic Board Loading Equipment
    • Labor Saving Push-type And Suction-type Automatic Board Loading Equipment
  • Labor Saving Push-type And Suction-type Automatic Board Loading Equipment

    Product Details:

    Place of Origin: Hebei , China (Mainland)
    Brand Name: LVJOE
    Certification: CE ISO 9001
    Model Number: 1300FM02

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Standard package for export or as per request for PVC and PET film faced gypsum ceiling board making machines.
    Delivery Time: 60 Days
    Payment Terms: L/C, T/T
    Supply Ability: 50 Sets Per Year
    Contact Now
    Detailed Product Description
    Features: Easy To Operate Driven Type: PLC System
    Voltage: 380V Dimension(L*W*H): 12600*1950*1600
    Warranty: 1 Year Weight: 3-30t

    Labor Saving Push-type And Suction-type Automatic Board Loading Equipment



    1.Production Description

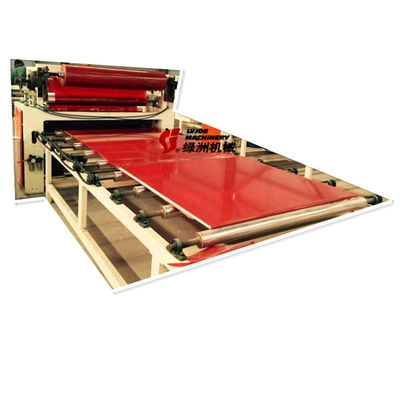

    gypsum board lamination machine usage and features:
    The machine is fit for the surface decorative materials, such as pasted and compound decorative

    film and decorative paper,etc of the PVC baseboard, profile,low foaming board and wood board, etc.



    2.Finished Board Size

    Size(mm) 595*595*8.0
    603*603*8.0
    600*1200*8.0



    3.Automatic Board Loading Equipment

    There are two types of this loading equipment for your choice.

    Name: 1.Suction type board loading machine

    Brand: LVJOE

    Original: China

    This equipment adopts single side suction way to feed kinds of palsterboard into the next production step.
    It can achieve the continous production without hurting the board. Eady to operate with reliable performance.
    Technical specification:
    Board size: 1220*2440mm
    Loading mode: continuous unilateral vacuum loading
    loading speed: 6pcs/min
    Install power: 4KW, 380V



    Name: 2.Push-type board loading machine
    Brand: LVJOE
    Original: China
    Cylinder push, photoelectric control. Max cylinder range 700mm. Through the push board platform rubber roller rolling transmission to accelerate speed, with the feature of low cost, easy to operate, fully automatic feeding.

    Max. Load-bearing: 3000kg

    Route: 1500mm

    Min. height: 620mm

    Max. height: 2000mm

    Platform size: 1220*2440mm

    Hydraulic pressure station power: 4kw



    4.USAGE

    Gypsum ceiling board is laminated PVC film in front side and aluminum

    film in back side of paper faced gypsum board. The features are

    waterproof, moisture proof, flame resistant, thermal insulation,

    radiation proof, anti-sagging, non-deformed, etc.

    Guarantee time 1 year after machine installation



    5.Our Services
    1. Best Price; we have our own factory, who has been specialized in full automatic pvc laminated gypsum
    ceiling tiles machine for more than 15 years, and you are welcome to our factory any time.
    2. Superior Quality; quality is the life of all our business.
    3. Best Service; we are the special International Trading Company of our factory, and especially focus on
    exporting business.
    4. Best after-sale service; our engineers will design scale of whole production line and help you with
    installation and commissioning, and train your workers or employees until they know how to operate all equipment.



    6.Company Information
    HEBEI LVJOE MACHINERY MANUFACTURING CO.,LTD. established in 1998, is a large manufacturer
    of integrated supply dedicated in researching,manufacturing,trading of plasterboard machinery. We are
    HEBEI province municipal civilized and creditable unit,with high-tech enterprise certificate issued by the
    state,national patent licenses,CE qualitysystem certification issued by the EU,and ISO9001 quality
    system certification.
