Gypsum Ceiling Tile Laminating PVC and Aluminum Film Equipment Plant

Gypsum Ceiling Tile Laminating PVC and Aluminum Film Equipment Plant

    • Gypsum Ceiling Tile  Laminating PVC and Aluminum Film Equipment Plant
    • Gypsum Ceiling Tile  Laminating PVC and Aluminum Film Equipment Plant
  • Gypsum Ceiling Tile  Laminating PVC and Aluminum Film Equipment Plant

    Product Details:

    Place of Origin: Hebei,China(Mainland)
    Brand Name: LVJOE
    Certification: ISO CE
    Model Number: 1300FM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 line
    Price: Negotiation
    Packaging Details: Standard packing
    Delivery Time: 2 Months
    Payment Terms: L/C, T/T
    Supply Ability: 10 lines per Year
    Contact Now
    Detailed Product Description
    Finished Board Type: PVC Laminated Gypsum Board Effective Laminating: 1300mm
    Electric Control: PLC System Production Capacity: 2-4 Million Sq.m/year
    Speed: 2-15m/min (adjustable) After-sales Service: Engineers Available To Service
    Warranty: 1 Year Glue Type: Water Glue For PVC Film

    Gypsum Ceiling Tile Laminating PVC and Aluminum Film Equipment Plant

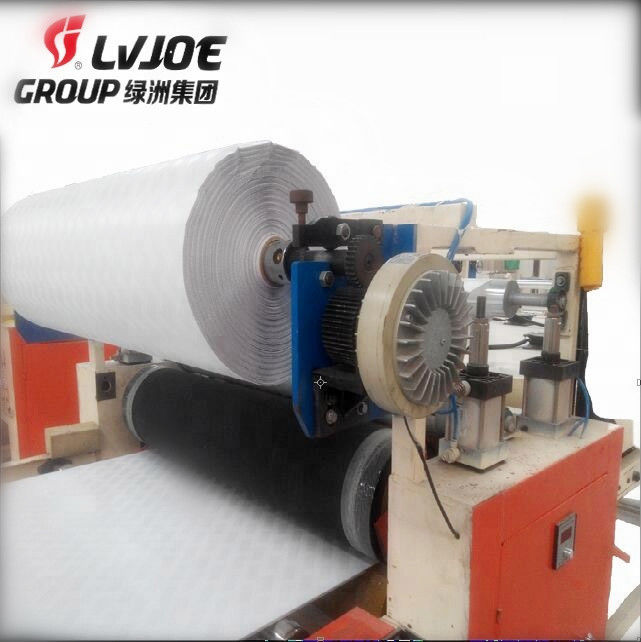

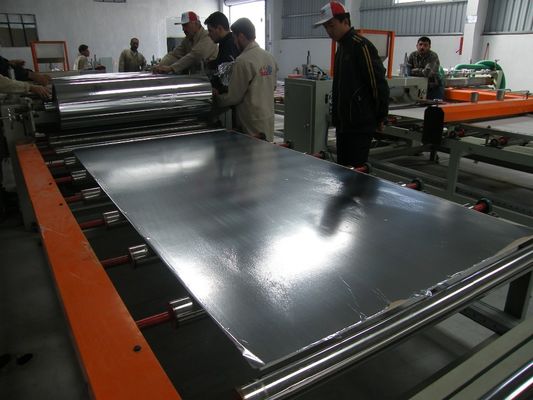

    Gypsum board lamination machine is to laminate fiber glass, paper, PVC film and aluminum foil on gypsum board,the finished products can be used as ceiling tile and partition wall panel.

    Flowchart:

    Automatic feeding→ dust cleaning →PVC film and aluminum foil laminating→ film cutting(manual/automatic)→conveying →vertical cutting(dust collecting)→horizontal cutting(dust collecting)→small board stacking →edge sealing →stretch packing →finished products stacking



    Automatic gypsum board feeding machine


    The cylinder push the gypsum board that above on the stack lift platform to the conveyor roll, Ready to laminate PVC and aluminum film
    Max. Load-bearing: 3000kg
    Stroke: 1500mm
    Min. Height: 620mm
    Max. Height: 2000mm
    Platform size: 1200*2400mm



    Automatic cutting machine


    Consist of two sets cutting system: vertical/longitudinal cutting and horizontal cutting, equipped dust collector system.
    Cut the 1.2*2.4m big board to the 603*603mm/595*595mm small board.
    Cutting speed: 15m/min
    Cutting knife: vertical/longitudinal:3 blades; horizontal : 5 blades
    Overall power: 17.15KW



    Sheet thickness
    5-30mm
    Speed adjustment way
    Frequency conversion synchronous speed regulating
    Annual capacity
    2-4 million Sq.m
    Film material
    PVC film, aluminum foils, decorative material, etc.
    Board sheet material
    PVC baseboard, gypsum board, wood board,sectional board, PVC foam board,etc
    Stacking mode
    10 layers(4packages/layer)
    Cutting mode
    lengthways:3 blades, horizontal: 5 blades
    Overrall dimension
    length:56000mm width:9200mm
    Lamination mode

    Double side:laminate front side and back at the one time

    single side:laminate one side at one time



    FAQ:

    Q: Are you trading company or manufacturer ?

    A: We are factory.

    Q: How long is your delivery time?

    A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

    Q: How long has the company been producing?
    A: 15 Years

    2.Q: Do you make test before shipment?

    A: Before shipment, we always test machine fully.



    Q: Why don't person reply to me?

    A: Our person is 24hours on-line. If nobody reply you , maybe he has other businesses temporarily. So please leave your requirements on e-mail or chat tool, we will reply you as soon as possible.



    Q: Can you guarantee your quality?

    A:Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.



    Q: How about after-sales service ?
    A: 1 year free warranty, Lifetime technical service support.

    Q: How can I install the production line and get a commissioning ?
    A: Engineers available to service Overseas. Relevant cost will be paid by you
    .
