Gypsum Ceiling Tile Production Line
Created with Pixso.

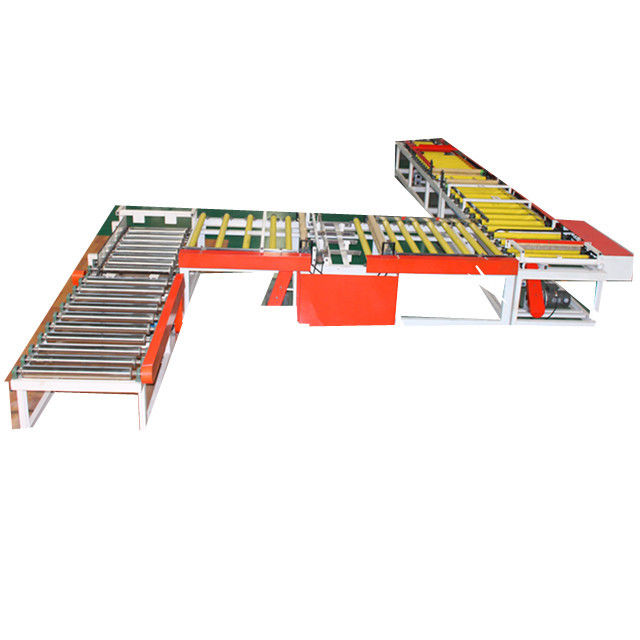

Automatic PVC Paper Faced Ceiling PanelLamination Machine with Cutting Saw Machine

Automatic PVC Paper Faced Ceiling PanelLamination Machine with Cutting Saw Machine

Brand Name: LVJOE
Model Number: 1300FM
MOQ: 1 line
Price: US $20000-200000
Payment Terms: L/C, T/T
Supply Ability: 10 lines per Year
Detail Information
Place of Origin:
Hebei,China(Mainland)
Certification:
ISO CE
Finished Board Type:
PVC Laminated Gypsum Board
Effective Laminating:
1300mm
Production Capacity:
2-4 Million Sq.m/year
Speed:
2-15m/min (adjustable)
After-sales Service:
Engineers Available To Service
Warranty:
1 Year
Glue Type:
Water Glue For PVC Film
Laminating Type:
Single+Double Sides
Packaging Details:
Standard packing
Supply Ability:
10 lines per Year
Highlight:

gypsum board making machine

,

gypsum board hurting machine

Product Description
Automatic PVC Paper Faced Ceiling Panel Lamination Machine with Cutting Saw Machine
Product Specifications
Attribute Value
Finished board type PVC laminated gypsum board
Effective laminating 1300mm
Production Capacity 2-4 million Sq.m/year
Speed 2-15m/min (adjustable)
After-sales Service Engineers available to service
Warranty 1 year
Glue type Water Glue for PVC film
Laminating type Single+Double Sides
Product Description

Ceiling Tile Equipment / Automatic Gypsum Board Lamination Machine

This gypsum board lamination machine laminates fiber glass, paper, PVC film and aluminum foil on gypsum board to produce ceiling tiles and partition wall panels.

Production Process
  • Automatic feeding
  • Dust cleaning
  • PVC film and aluminum foil laminating
  • Film cutting (manual/automatic)
  • Conveying
  • Vertical cutting (dust collecting)
  • Horizontal cutting (dust collecting)
  • Small board stacking
  • Edge sealing
  • Stretch packing
  • Finished products stacking
Key Components

1. Automatic Gypsum Board Feeding Machine

  • Cylinder pushes gypsum board from stack lift platform to conveyor roll
  • Max. Load-bearing: 3000kg
  • Stroke: 1500mm
  • Min. Height: 620mm
  • Max. Height: 2000mm
  • Platform size: 1200*2400mm

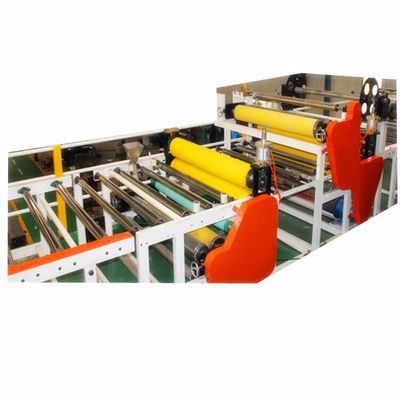

2. Double Sided Laminating Machine

  • Effective lamination width: ≤ 1300mm
  • Thickness of sheet: 5-30mm
  • Lamination speed: 3-15m/min
  • Board feeding and releasing mode: automatic

3. Automatic Cutting Machine

  • Two cutting systems: vertical/longitudinal cutting and horizontal cutting
  • Equipped with dust collector system
  • Cuts 1.2*2.4m boards to 603*603mm/595*595mm sizes
  • Cutting speed: 15m/min
  • Cutting knives: vertical/longitudinal: 3 blades; horizontal: 5 blades
  • Overall power: 17.15KW
Technical Parameters
Sheet thickness 5-30mm
Speed adjustment Frequency conversion synchronous speed regulating
Annual capacity 2-4 million Sq.m
Film material PVC film, aluminum foils, decorative material, etc.
Board sheet material PVC baseboard, gypsum board, wood board, sectional board, PVC foam board, etc.
Stacking mode 10 layers (4 packages/layer)
Cutting mode Lengthways: 3 blades, horizontal: 5 blades
Overall dimension Length: 56000mm, width: 9200mm
Lamination mode Double side: laminate front side and back at one time
Single side: laminate one side at one time
