Gypsum Ceiling Tile Production Line
Created with Pixso.

Ceiling Tile Equipment / Automatic Gypsum Board Lamination Machine

Ceiling Tile Equipment / Automatic Gypsum Board Lamination Machine

Brand Name: LVJOE
Model Number: 1300FM
MOQ: 1 line
Price: US $20000-200000
Payment Terms: L/C, T/T
Supply Ability: 10 lines per Year
Detail Information
Place of Origin:
Hebei,China(Mainland)
Certification:
ISO CE
Finished Board Type:
PVC Laminated Gypsum Board
Effective Laminating:
1300mm
Electric Control:
PLC System
Production Capacity:
2-4 Million Sq.m/year
Speed:
2-15m/min (adjustable)
After-sales Service:
Engineers Available To Service
Warranty:
1 Year
Glue Type:
Water Glue For PVC Film
Packaging Details:
Standard packing
Supply Ability:
10 lines per Year
Highlight:

gypsum board making machine

,

gypsum board feeding machine

Product Description

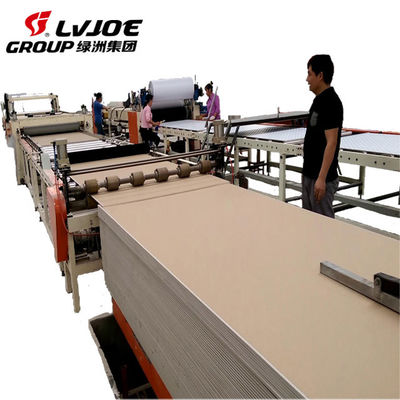

Automatic Gypsum Board Lamination Machine

Professional equipment for producing PVC laminated gypsum boards used as ceiling tiles and partition wall panels.

Key Specifications
Attribute Value
Finished board type PVC laminated gypsum board
Effective laminating width 1300mm
Control system PLC automation
Production Capacity 2-4 million Sq.m/year
Operating Speed 2-15m/min (adjustable)
Warranty 1 year
Adhesive type Water Glue for PVC film
Production Process

Complete automated workflow from material feeding to finished product stacking:

  • Automatic feeding system
  • Dust cleaning station
  • PVC film/aluminum foil laminating
  • Film cutting (manual/automatic options)
  • Conveying system
  • Precision vertical/horizontal cutting with dust collection
  • Small board stacking
  • Edge sealing
  • Stretch packing
  • Finished product stacking
Machine Components
1. Automatic Gypsum Board Feeding Machine
  • Cylinder push system for board transfer
  • Max load capacity: 3000kg
  • Stroke: 1500mm
  • Height adjustment range: 620-2000mm
  • Platform size: 1200×2400mm

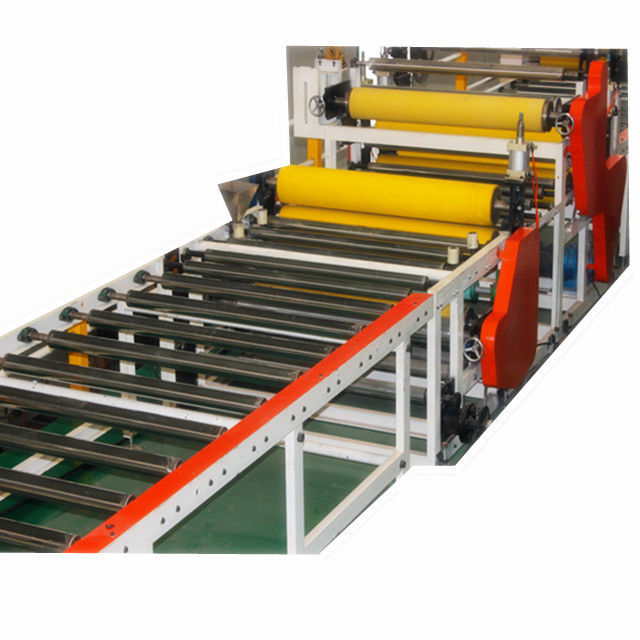

2. Double Sided Laminating Machine
  • Effective width: ≤1300mm
  • Material thickness range: 5-30mm
  • Lamination speed: 3-15m/min
  • Fully automatic board handling
3. Automatic Cutting System
  • Dual cutting systems (vertical/horizontal)
  • Integrated dust collection
  • Converts 1.2×2.4m boards to 603×603mm/595×595mm
  • Cutting speed: 15m/min
  • Total power: 17.15KW
Technical Parameters
  • Material thickness range: 5-30mm
  • Speed control: Frequency conversion regulation
  • Annual capacity: 2-4 million square meters
  • Compatible materials: PVC film, aluminum foils, decorative materials
  • Stacking capacity: 10 layers (4 packages/layer)
  • Overall dimensions: 56000×9200mm
Ceiling Tile Equipment / Automatic Gypsum Board Lamination Machine 0
