Gypsum Ceiling Tile Production Line
Created with Pixso.

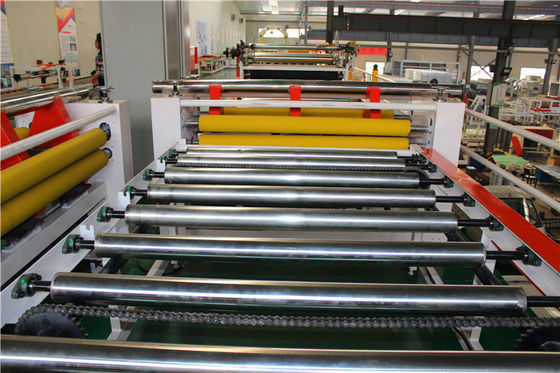

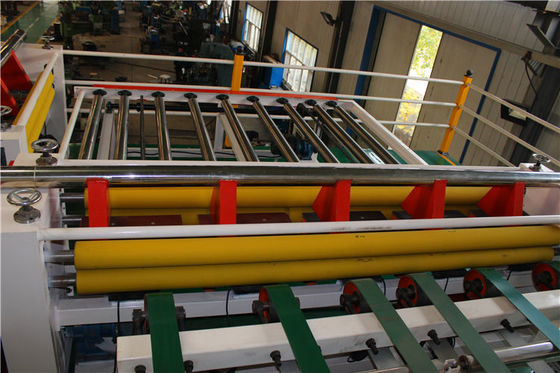

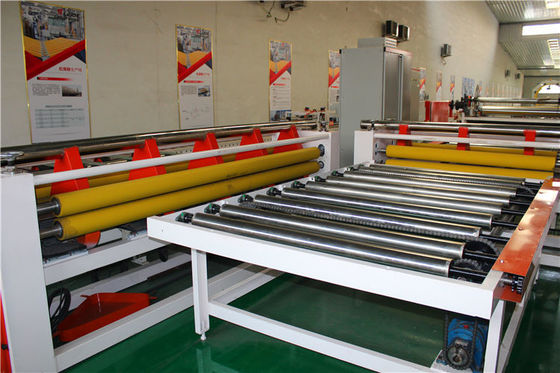

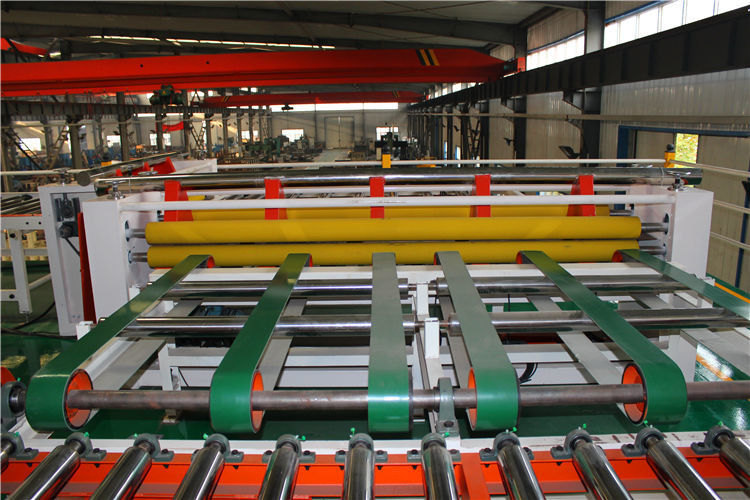

Double Sides PVC Film Plasterboard Lamination Machine With Cutting Machine

Double Sides PVC Film Plasterboard Lamination Machine With Cutting Machine

Brand Name: LVJOE
Model Number: 1300FM01
MOQ: 1 Set
Price: US $20000-200000
Payment Terms: L/C, T/T
Supply Ability: 50 Set/Sets per Year
Detail Information
Place of Origin:
Hebei, China (Mainland)
Certification:
CE ISO9001
Features:
Easy To Operate
Installed Power:
4KW
Effevtive Lamination Width:
≤1300
Laminating Speed:
15m/min
Thickness Of Sheet:
5-30mm
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Packaging Details:
Standard package for gypsum board lamination machine export or as per requirement
Supply Ability:
50 Set/Sets per Year
Highlight:

gypsum board feeding machine

,

gypsum board hurting machine

Product Description
Double Sides PVC Film Plasterboard Lamination Machine With Cutting Machine
Key Specifications
Attribute Value
Installed Power 4KW
Effective Lamination Width ≤1300mm
Laminating Speed 15m/min
Thickness of Sheet 5-30mm
Features Easy to operate
After-sales Service Engineers available to service machinery overseas
Technical Parameters
Model LV-130FM03
Max. Laminating Width 1300mm
Thickness of Sheet 5-30mm
Max. Laminating Speed 15m/min
Speed Regulation Frequency conversion synchronous speed regulating
Installed Power 22kw
PVC Gypsum Board Sizes
  • 595 × 595 × 8.0mm
  • 603 × 603 × 8.0mm
  • 600 × 1200 × 8.0mm
Machine Specifications
  • Cutting speed: 15m/min adjustable
  • Cutting knife configuration: three vertical, five horizontal
  • Max cutting speed: 15m/min
  • Transmit power: 17.15 KW
  • Power: 380V (50hz) (customizable upon request)
  • Dimensions: 9000 × 4200 × 1400mm
  • Electrical control system: PLC system
Operation Process

The machine cuts laminated gypsum boards to standard sizes. Boards are placed on delivery rolls, processed through the cutting system twice via delivery rolls, then output as finished product. A set of pulsed sack-duster can be added upon request.

Double Sides PVC Film Plasterboard Lamination Machine With Cutting Machine 0
Our Advantages
  • Competitive Pricing: Direct factory pricing with 15+ years of specialization in PVC laminated gypsum ceiling tile machinery
  • Superior Quality: Rigorous quality control standards
  • Comprehensive Service: Dedicated international trading team focused on export business
  • After-sales Support: Engineers provide installation, commissioning, and operator training services
