Place of Origin: | Hebei, China (Mainland) |
Brand Name: | LV JOE |
Certification: | CE ISO |
Minimum Order Quantity: | 1 line |
---|---|
Price: | Negotiation |
Packaging Details: | standard package |
Delivery Time: | 2 months |
Supply Ability: | 10 lines per year |
Type: | Full-automatic | Application: | Making Machine |
---|---|---|---|
Kind Of Machinery: | Building Material Machinery | Advantages: | Can Cutomize According To Your Requirements |
Advantages2: | Engineer Available To Serve Machinery Over-seas After Sales |
Full-automatic Mgo Board Production Line / Gypsum Board Laminating Machine / Hole Punching Machine
Mgo board machine adopts the automatic template device to save the labour cost. It also adopts automatic coating release agent system, by this way the release agent is evenly, less dosage and clean. Roller and forming roller precision is high that makes the board uniform thickness and smooth. Automatic cutting film system adopts fixed length cutting method, cutter does not hurt the template.

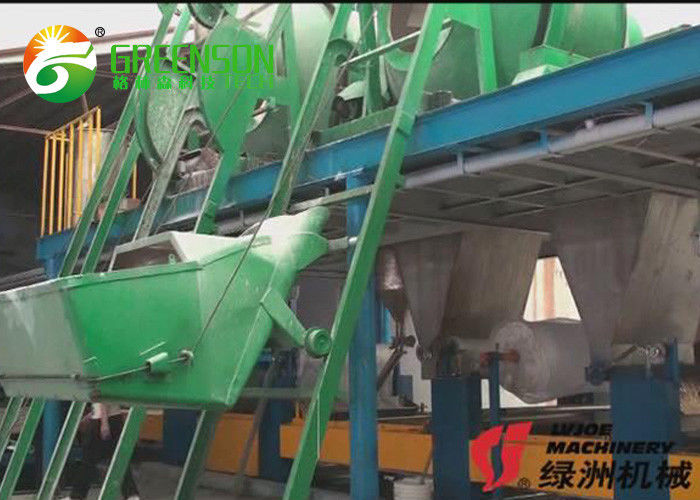

Automatic mgo board production line
1. Production Line
mgo board making machine can produce all kinds of magnesium oxide boards, they can be used for ceiling, wall skirting, decorating of indoor wall and lining board for furniture. It can replace three-ply board, five-ply board, flake board, MDF (Medium Density Fiberboard ) and Gypsum Board. It is really environment product and lower cost.
2. Raw material and cost analysis
The product is formed with crushed crop straw or sawdust and some inorganic chemical materials at one time after roller-extruding. The source of raw materials is widely and they are purchased easily for customers.
3. Technology features
There is not any requirement about high temperature and high pressure during production processing. The board will be formed at one time after roller-extruding under the conditions of normal temperature and normal pressure. This is a green environmental-protection project, because that there is no waste water, waste materials and waste gas during its production processing. The finished board doesn't need high temperature drying, air-drying and watering, and under the normal temperature, they will dry well indoor.
4. Equipment Model and Product Specification
According to different production, our equipment has 6 models for large-scale, middle-scale and small-scale. Our all equipment can produce board with same quality and specification but different production.
The board with the thickness of 2-60mm, the biggest width of 1, 300mm and unlimited length. So you can adjust the thickness of board at will. The standard specification of the board is 1.22mX2.44m.
5. After-sale
After purchased the equipment, we will teach relevant technology for free, and will go to your factory for installation and testing until you can produce the qualified product by yourself. Our company will train 2-3 technical personnel for free until he can get the skill. We will take responsibility for provide technical consultation and following-up service for a long time, the equipment warranty period is one year.
Technical parameter:
Effective laminating width
|
1300mm
|
Sheet thickness
|
5-30mm
|
Laminating speed
|
15m/min
|
Speed adjustment way
|
Frequency conversion synchronous speed regulating
|
Electrical control
|
PLC
|
Annual capacity
|
2-4 million Sq.m
|
Film material
|
PVC film, aluminum foils, decorative material, etc.
|
Board sheet material
|
PVC baseboard, gypsum board, wood board,sectional board, PVC foam board,etc
|
It can customize according to customer’s requirements.
|
Usage:
Gypsum ceiling board is laminated PVC film in front side and aluminum film in back side of paper faced gypsum board. The features are waterproof, moisture proof, flame resistant, thermal insulation,radiation proof, anti-sagging, non-deformed, etc.

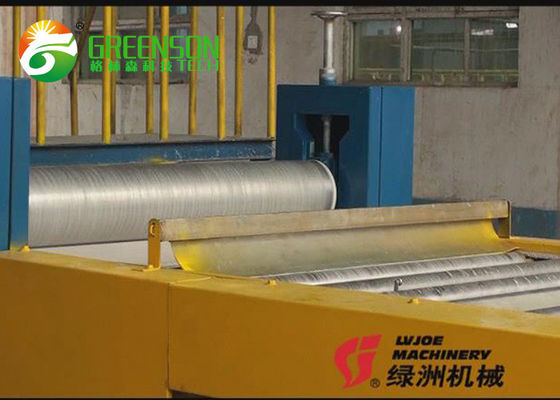

Flowchart Of Full-automatic Laminating Machine
Automatic board feeding——pre dusting——coating——drying and conveying—— aluminium foil unwinding——pneumatic lamination for film and gypsum board——cutting——conveying——automatic overturn——coating——drying and conveying——PVCfilm unwinding——pneumatic lamination for film and gypsum board——cutting——drying and conveying——lengthwise cutting——horizontal cutting——belt conveyor output——autolift stacking conveying——stretch packing——conveying——lift(finished products stacking)
