Sheet Perforation Machine
Created with Pixso.

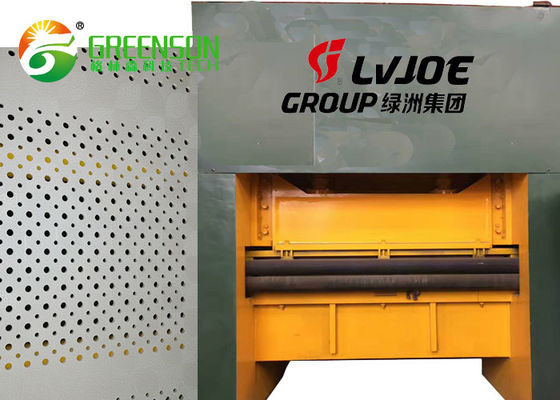

Soundproof Sheet Perforation Machine , Acoustical Gypsum Ceiling Panel Making Machinery

Soundproof Sheet Perforation Machine , Acoustical Gypsum Ceiling Panel Making Machinery

Brand Name: LVJOE
Model Number: LV-CK01
MOQ: 1 set
Price: US $20000-80000
Supply Ability: 50 sets per year
Detail Information
Place of Origin:
China
Certification:
ISO CE SGS
Pressure:
80T, 160T, 200T
Usage:
Gypsum Board, MDF, HPL, Fiber Cement Board Perforation
Holes:
Round, Square
Automatic Level:
High Automatic
Thickness:
Max. 20mm
Packaging Details:
PE film wrapped
Supply Ability:
50 sets per year
Highlight:

Acoustical Gypsum Ceiling Panel Making Machinery

,

Soundproof Sheet Perforation Machine

,

Soundproof Perforated Metal Sheet Machine

Product Description
Soundproof Sheet Perforation Machine, Acoustical Gypsum Ceiling Panel Making Machinery
Product Specifications
Attribute Value
Pressure 80T, 160T, 200T
Usage Gypsum Board, MDF, HPL, Fiber cement board perforation
Holes Round, Square
Automatic level High automatic
Thickness Max. 20mm
Technical Specifications
  • Punching pressure: 200 ton
  • Stroke: 30 mm
  • Max mold height closed: 260mm
  • Number of strokes: 50 times/minute
  • Slide surface: 210*1100mm
  • Working table: 300*1670mm
  • Spacing of both pole: 1350mm (load the max board width 1220mm)
  • Power of main motor: 22kw
  • Power of servo motor: 2.6kw (brand: Zhejiang yifeng)
  • Feeding accuracy: ±1mm
  • Maximum feeding rate: 100mm
  • Maximum feeding thickness: 20mm
  • Gross weight of machine: 11000kg
  • Overall dimension: 2300*1500*2300(H*L*W)
Applications

This perforation machine is designed for creating precise holes in various materials including gypsum ceiling board, MgO board, MDF, HPL, Fiber cement board, and metal sheets. Custom hole shapes are available to meet specific requirements. Comprehensive operational training is provided.

Finished Product Example
Soundproof Sheet Perforation Machine , Acoustical Gypsum Ceiling Panel Making Machinery 0
