Place of Origin: | Hebei, China (Mainland) |
Brand Name: | LV JOE |
Certification: | ISO CE, ISO CE |
Model Number: | LV--1300SFM(01/02/03) |
Minimum Order Quantity: | 1 Line |
---|---|
Price: | Negotiation |
Packaging Details: | standard package |
Delivery Time: | 2 Months |
Supply Ability: | 10 lines per year |
Power(W): | 55kw | Annual Capacity: | 2-8million Sqm |
---|---|---|---|
Color: | Customised | Application: | Film, Machinery Production |
Plastic Processed: | PVC | Raw Material: | Pvc Film Gypsum Board Pet Film |
Automatic Grade: | Automatic | Usage: | Laminate Gypsum Board |
Voltage: | 380V | Weight: | Based On Models |
gypsum board automatic cutting machine
This model adopts latest double sides coating and laminating technology, synchronous coating and gluing the front( such as PVC) and the reverse side (such as aluminium foils)at the same time, without turn-over.
Gypsum board lamination machine is to laminate film on gypsum board,the whole machine is in a synchronous way.
1.Capacity:
7000-12000m2 per day
(basis of calculation: L:595mm, T:7mm, W:595mm, weight: 5.5 kg/M2, for 7mm board)
2.Automation
simple and high degree automatic
3.Main materials
Gypsum board , PVC film, aluminum foil, glue for PVC, glue for aluminum
4.Dimension of product
Length*Width:595*595mm,600*600mm,603*603mm,1200*600mm
Thickness:7.0mm, 7.5mm, 8.0mm,8.5mm 9.0mm
lamination machine technical parameters:
Model | LV--1300SFM01 LV--1300SFM02 LV--1300SFM03 |
Max. laminating width | 1300mm |
Thickness of sheet | 5----30mm |
Max. Laminating Speed | 15m/min |
Speed Regulation | Frequency conversion synchronous speed regulating |
installed power |
8kw 10kw 20kw |
1. gypsum ceiling board lamination machine line:
gypsum board lamination machine is to laminate film on gypsum board
lamination width: 1220mm
gypsum board size: 1220*2440mm
glue: specific glue for pvc film and aluminum foil
max sheet speed: 2/15m/min
thickness of sheet: 2-50mm
motor power: 4.5kw coating and lamination part are driven by chain wheel.
2. Automatic feeding machine
1. push-type 2. suction-type Two types for choice
Cylinder push, photoelectric control, Max.Cylinder range 700mm. Through the push board platform rubber roller rolling transmission to accelerate speed,with the feature of low cost,economic and affordable (comparing to the suction type),easy to operate,fully automatic feeding.

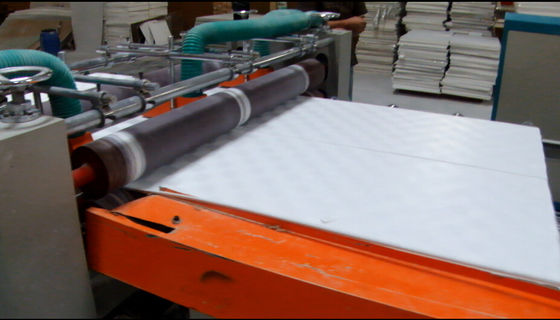

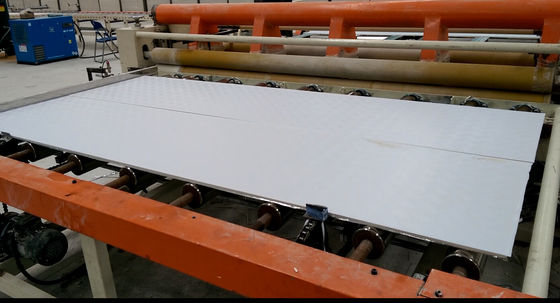

3. Automatic cutting machine
This machine is used for cutting the laminated gypsum boards to a size of board according to saw gauge standard. First, put board to delivery roll, then come to the cutting system for the first time, and it turns to cutting system for the second time though delivery roll, then come to the board. It can be made a set of pulsed sack-duster for requirements.
4. Automatic sealing machine
right angle type gypsum board sealing machine
This machine is a gypsum board ceiling decoration edging equipment, PLC photoelectric automatic control, high speed, high capacity. Edging tight and firm. Less investment in equipment and quick. It is a board(plasterboard), Hemming preferred equipment.
5. Automatic shrinking machine
warm shrinking machine doing the heats shrinkable packaging for gypsum board after the
completion of the sealing and cutting edge, using infrared ray heating for the film contraction.
Specification:
Packaging speed: 20m/minutes
Weight: 500KG
Packaging size: L1200*W700*H300mm
Power : 18.75KW
6.electrostatic pulse bag style dust collector
1. Usage:
The machine is used in the dust collector of the automatic cutter of the laminated gypsum board.It equipped with big sized dust exhaust fan and dust exhaust pipe.
It can efficiently reach to the purpose of the dust exhausting.
2. Machine composition:
Dust collector frame, one set of main machine, one set of dust collector pipe,
one set of dust collector motor,dust collector bag,dedusting frame,pulse controller.
