Acoustical Ceiling Tiles Sheet Perforation Machine For Round / Square Holes

Acoustical Ceiling Tiles Sheet Perforation Machine For Round / Square Holes

Acoustical Ceiling Tiles Sheet Perforation Machine For Round / Square Holes

Product Details:

Place of Origin: China
Brand Name: LVJOE
Certification: ISO CE SGS
Model Number: LV-CK01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: PE film wrapped
Delivery Time: 30 days
Supply Ability: 50 sets per year
Contact Now
Detailed Product Description
Pressure: 80T, 160T, 200T Usage: Gypsum Board, MDF, HPL, Fiber Cement Board Perforation
Patterns: Round, Square, Oval, Hexagonal, Irregular Width Of Perforation: 1220mm
Speed: 50 Times/minute Overall Size: 2300*1500*2300(H*L*W)
Weight: 7-11T

Acoustical Ceiling Tiles Round or Square Holes Perforated Plasterboard Machine





Technical data:

1. Punching pressure: 200 ton

2. Stroke: 30 mm

3. Max mold height closed: 260mm.

4. Number of strokes: 50 times/minute

5. Slide surface: 210*1100mm

6. Working table: 300*1670mm

7. Spacing of both pole: 1350mm (load the max board width 1220mm)

8. Power of main motor: 22kw Power of servo motor:2.6kw(brand: Zhejiang yifeng)

9. Feeding accuracy: ±1mm

10. Maximum feeding rate: 100mm

11. Maximum feeding thickness: 20mm

12. Gross weight of machine: 11000kg

13. Overall dimension: 2300*1500*2300(H*L*W)



14. Structure and configuration:

Body of the main machine is welded with Q235 steel plate. H type gantry structure

15. configuration of feeding system

Servo motor controlled feeding device

a. With front and rear roller conveyor (3000mm each)

b. Adopt unilateral positioning , easy operation, high frequency

16. Configuration for electric control system

Central cabinet control, LCD touch screen digital input, control the feeding, punching, operation

5.7-inch color LCD touch screen



Usage



This perforation machine is used to perforate holes in the gypsum ceiling board, MgO board, MDF, HDF, Fiber cement board, metal sheet.



Various of Perforation patterns



Perforating mold designs are as customized. Our Company established a punching pattern database, to provide technical support for customers.

(Round hole, Square hole, Oval hole, Round/oval cross, Hexagonal hole, Irregular hole etc.)

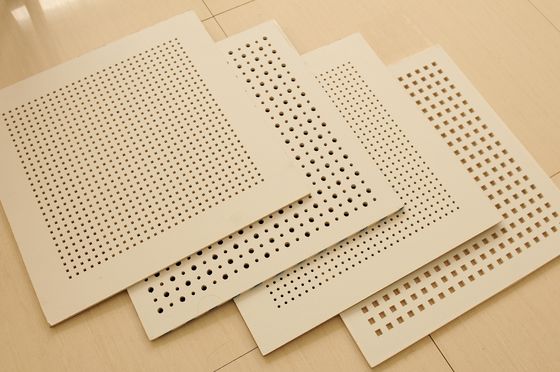

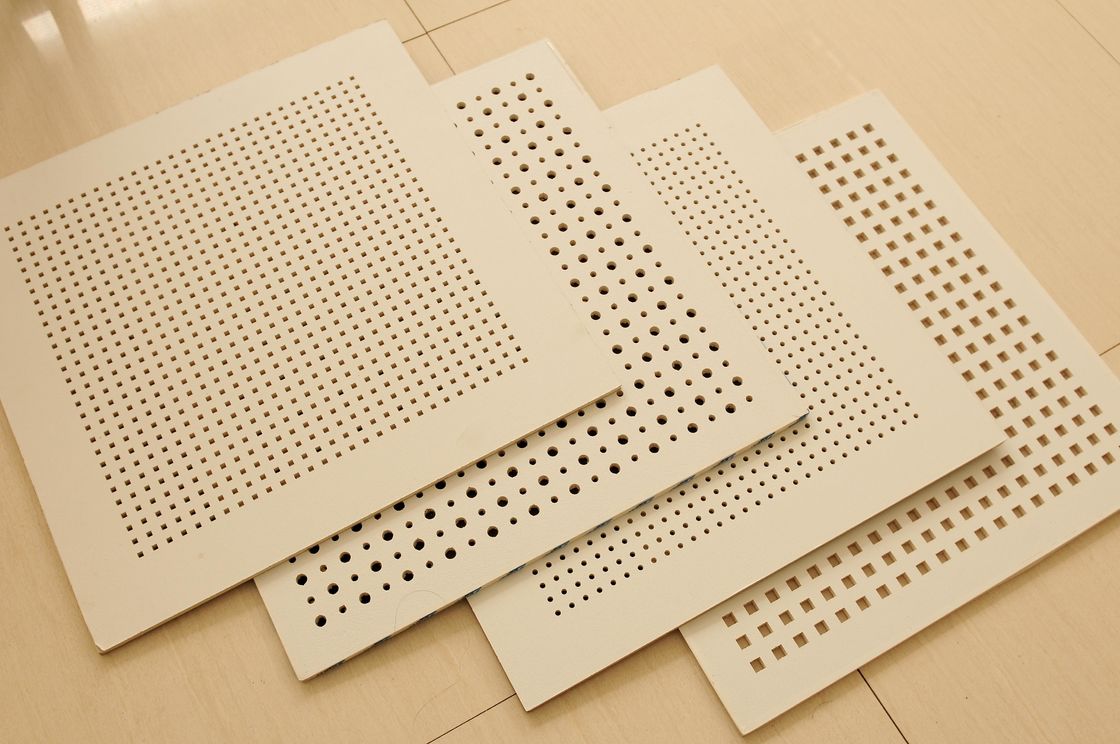

Finished Products



Acoustical Ceiling Tiles Sheet Perforation Machine For Round / Square Holes
